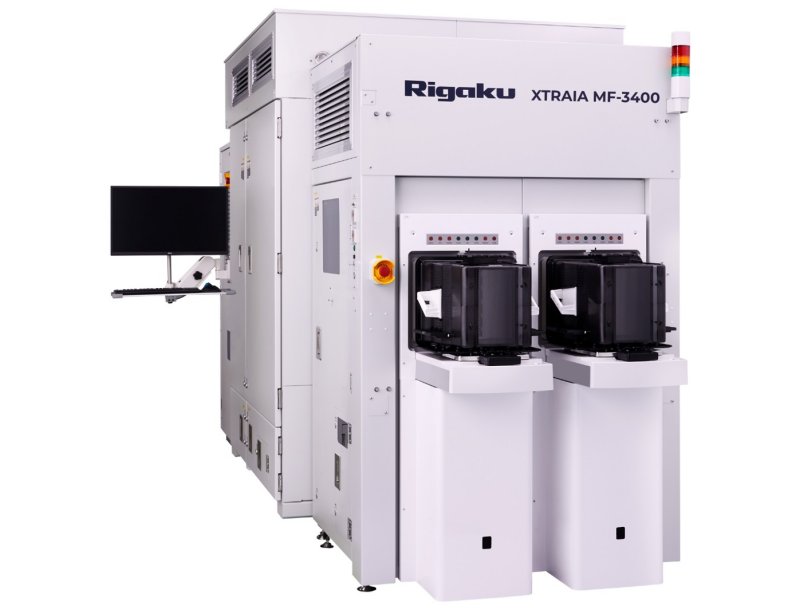

XTRAIA MF-3400
Fourth generation high-speed, high-precision X-ray metrology
Multifunctional XRR / XRD / XRF metrology system for thin-film analysis and process control for patterned wafer up to 300 mm
The XTRAIA MF-3400 introduces the fourth generation (Gen 4) of Rigaku’s multifunctional thin-film metrology platform, combining XRR, XRD, and XRF technologies in a single high-throughput, high-precision system.
Designed for demanding semiconductor environments, the MF-3400 delivers superior measurement speed, accuracy, and uptime, driven by innovations in X-ray source intensity, robotic precision, and automated system control.
Its newly developed high-intensity Cu tube provides twice the XRF intensity for improved sensitivity, while the real-time monitored robotic arm achieves unprecedented repeatability. Together with advanced software and fault-tolerant mechanical systems, the MF-3400 ensures robust, repeatable results for high-volume production lines.
XTRAIA MF-3400 Overview
The XTRAIA MF-3400 is engineered for thin-film metrology across XRR, XRD, and XRF modes. It provides high-precision measurement of layer thickness, density, and composition, with faster analysis cycles for semiconductor wafer characterization.
This new system builds on the proven strengths of the previous generation, now featuring an X-ray source with nearly double the intensity and a redesigned transfer mechanism for faster, more precise handling. Advanced automation functions, such as search-less autofocus, real-time transfer-arm position control, and automatic FOUP door closing, ensure seamless operation, reduced downtime, and exceptional stability in cleanroom environments.
- Over 40 % faster throughput than the previous generation.
- Repeatability improved from ±0.1 mm → ±0.04 mm
- Dual-intensity Cu X-ray tube – 2× higher XRF intensity
- Search-less autofocus and real-time position monitoring
- FOUP door close & fault-tolerant FFU for reliability
XTRAIA MF-3400 Features
Maintaining the proven functional advantages of the MF-3000 series, now enhanced with the following new features:
XTRAIA MF-3400 Specifications
| Technique | X-ray reflectivity (XRR), X-ray diffraction (XRD), and X-ray fluorescence (XRF) | |
|---|---|---|
| Detector type | HyPix 3000 for XRR/XRD • SDD for XRF | |
| X-ray source | High-power Cu tube (Gen 4) – 2× higher intensity vs. previous generation | |
| Repeatability | ±0.04 mm (Improved from ±0.1 mm) | |
| Sample compatibility | Semiconductor wafers (≤ 200 mm and 300 mm configurations) | |
XTRAIA MF-3400 Options
- Alternative X-ray tube configurations for application flexibility
- Multilayer analysis software packages (extended FP module)
- Cleanroom integration kits and robotic interfaces
The following accessories are available for this product:
