SmartLab SE 概览
SmartLab Studio II软件集成智能引导专家系统，可为针对特定应用的测量需求，智能推荐最优硬件配置和参数设置。该软件能筛选适配的光学器件，确定仪器设置并执行测量，实现全自动的测量流程。此外，得益于SmartLab SE的内置组件识别功能，智能导引导系统不仅能输出最优配置 ，还会在配置不当时发出警告。专家级智能决策与硬件配置验证相结合，共同构筑了SmartLab SE平台的基础。
HyPix-400：新一代二维探测器
伴随着 SmartLab SE，理学同步推出了可选配的 HyPix-400探测器。这是一款专为多 功能X 射线衍射仪设计的半导体混合像素阵列探测器。具备大有效探测面积、高角度分辨率和超高动态范围三大优势，是粉末衍射、薄膜衍射等多场景下兼具性能与经济性的二维探测解决方案。此外，系统支持D/teX Ultra 250 硅条探测器作为标准配置。
自动对准以最大化运行时间
传统衍射仪上更换硬件配置或耗材时通常依赖售后工程师的操作，存在导致成本高昂、耗时费力。SmartLab SE 采用自动对准的光学系统，从X射线管高度校准到单色器对准，全流程由计算机自动控制完成。这一功能显著减少了停机时间，降低了了总体拥有成本，并确保仪器始终处于最佳工作状态。
SmartLab SE 功能
SmartLab SE 视频
SmartLab SE 技术规格
| 技术原理 | X 射线衍射（XRD） | |
|---|---|---|
| 应用场景 | 粉末衍射、薄膜衍射、小角散射（SAXS）、极图、残余应力和非环境原位实验 | |
| 仪器类型 | 内置智能引导系统的多功能θ-θ X 射线衍射仪 | |
| 标准配置 | 3 kW 密封 X 射线管 D/teX Ultra 250 硅条探测器 垂直型 θ-θ 测角仪 |
|
| 可选配置 | 二维 HPAD探测器HyPix-400 | |
| 控制系统 | 外置PC、MS Windows 操作系统、SmartLab Studio II 软件 | |
| 尺寸 | 1270（宽）×1880（高）×1220（深）mm | |
| 整机质量 | 约 800 千克（核心部件） | |
| 电源要求 | 三相： 200 V AC 50/60 Hz 30 A 单相： 220-230 V AC 50/60 Hz 40 A |
|
SmartLab SE 选配项目
本产品可选配以下附件：

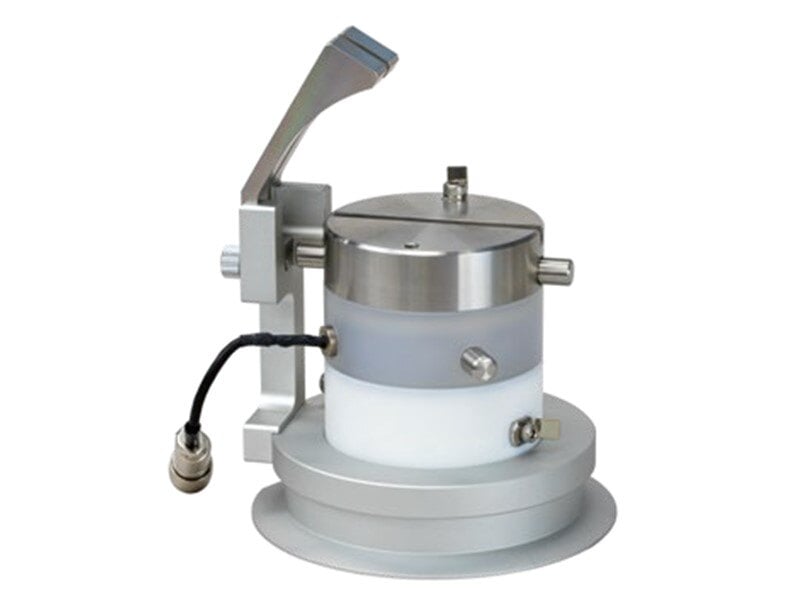

Solid-State Battery Cell Attachment
Enables In Operando XRD analysis of a complete and functioning rechargeable solid-state cell.
Liquid Electrolyte Cell Attachment
Holds the individual components of a battery (anode, cathode, liquid electrolyte, etc.) to form a working rechargeable cell.
Laminate/Pouch Cell Attachment
Holds a laminate/pouch type rechargeable cell for In Operando XRD analysis.
Coin Cell Attachment - Reflection
Holds a coin cell horizontally for reflection geometry X-ray beam for In Operando XRD analysis.
Coin Cell Attachment - Transmission
Holds a coin cell vertically for transmission geometry X-ray beam for In Operando XRD analysis.
