OXIDE-FB-PAK

This package is applicable for various oxide materials, such as rock, mineral, ore, slag, refractory or cement. The package is designed for the use of two kinds of lithium borate flux; one is 100% lithium tetraborate (LT) and the other is the mixture of 66% lithium tetraborate and 34% lithium metaborate (LM). The former is suitable for alkaline (basic) samples, including high content of alkali metal or alkaline earth metal elements, or for samples containing components easily crystallized, while the latter is effective for acidic oxides owing to their high dissolution property. The package has calibration for each of these fluxes.

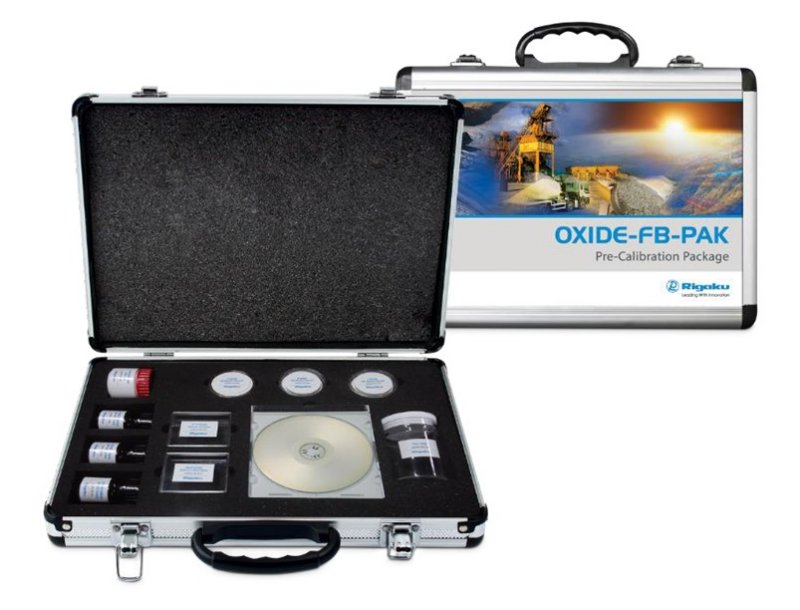

OXIDE-FB-PAK comes in a solid Al case containing:

• Drift correction samples
  • XRF monitor glass disks, 3 pcs.
• Bias correction samples

  • Pure silica with LT 100%, 1 fused bead
• Validation powder samples

  • RM powder, 3 bottles (10 g each)
    (alumina sand, iron ore, cement)
• Calibration check samples

  • Alumina sand with LT 100%, 1 fused bead
  • Alumina sand with LT 66%/MT 34%, 1 fused bead
• Flux

  • LT 100%, 1 bottle (100 g)
  • LT 66%/MT 34%, 1 bottle (100 g)
• Non-wetting agent

  • Lithium bromide, 1 bottle (50 g)
• Backup CD

  • calibration curves (calibration constants) for LT 100% and LT 66%/LM 34%
  • correction coefficients
  • measurement conditions
  • other application setting
• Instruction manual

The "Fusion Bead Correction" optional program is required. In the case of ZSX Primus III NEXT, the optional Ge crystal is also required.

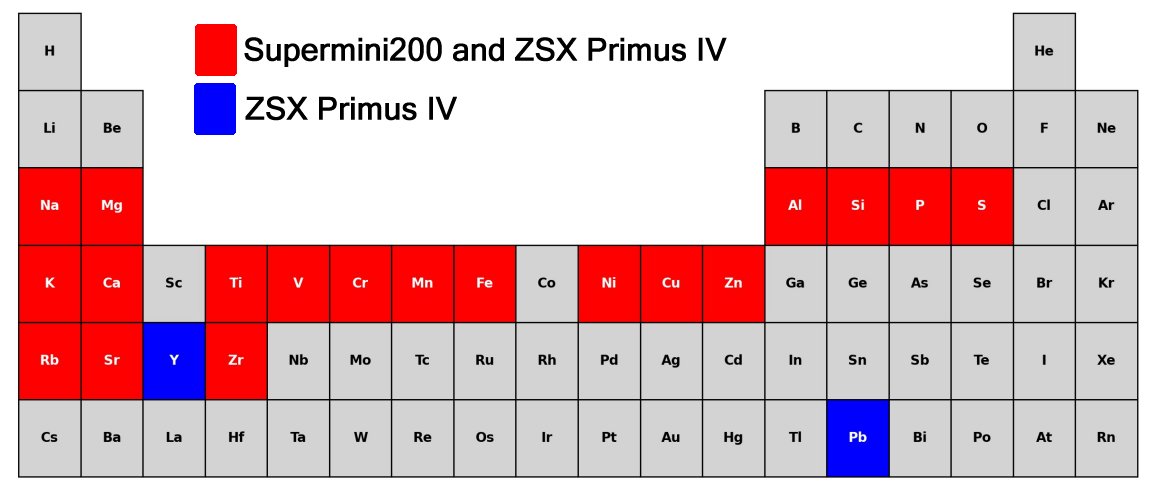

• Supermini200 - 21 Compounds
• ZSX Primus IV - 23 Compounds
