CQL Max-ID

    Handheld 1064 nm Raman Analyzer

    Maximize chemical threat analysis response

    The Rigaku CQL Max-ID handheld 1064 nm Raman analyzer offers features and benefits that maximize chemical threat analysis in safety and security applications.  With an on-board library of over 13,000 items, the CQL Max-ID provides first responders, border security, and the military with a device that can identify narcotics, explosives, toxic chemical industrial chemicals, chemical warfare agents (CWAs), and more - without the concerns of fluorescence interference.

    CQL Max-ID Overview

    With the ability to select the analysis mode, the CQL Max-ID has the unique capability of providing situational analysis based on the user’s needs:

    • Identification of an unknown substance
    • Priority listing of a substance (utilization of ThreatAlert hazard targeting)

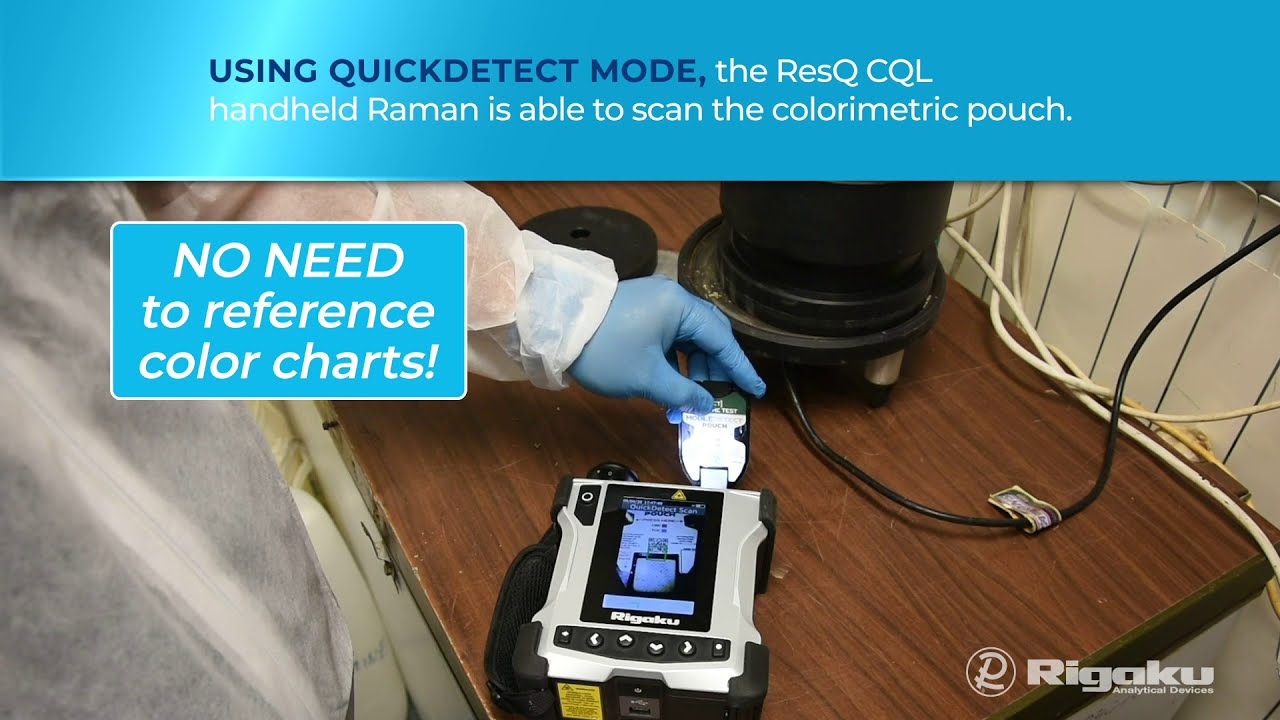

    • Detection of an unknown substance (with optional QuickDetect Mode)

    Rigaku's 1064 nm Raman advantage

    The advantage of utilizing a 1064 nm Raman laser excitation means fluorescence interference is reduced.  This is a common issue to older generation Raman devices when scanning dirty or mixed substances.  Users can expect a result every scan, in just minutes.

    Part of the U.S. DoD JPEO DR SKO program

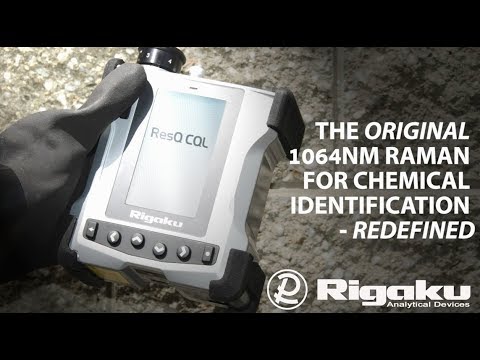

    The CQL Max-ID is based on Rigaku's award -winning ResQ and subsequent CQL platforms, which have been evaluated and approved by the U.S. DoD JPEO DR SKO Modernization program.  This program deploys new and improved kits of technology to Department of Defense locations around the world for characterization of suspected chemical, biological, radiological, and nuclear (CBRN) hazards.

    Unparalleled Support

    The CQL Max-ID is designed to be the superior option for chemical threat analysis that is supported by Rigaku's global distribution channels that offers:

    • Comprehensive training options
    • Access to 24/7 Reachback support
    • Spectral library updates
    • Software upgrades
    • 36-month manufacturer's warranty with additional coverage options

    CQL Max-ID Features

    How Can the CQL Max-ID Provide Advanced In-Field Analysis for Your Chemical Threat Response?

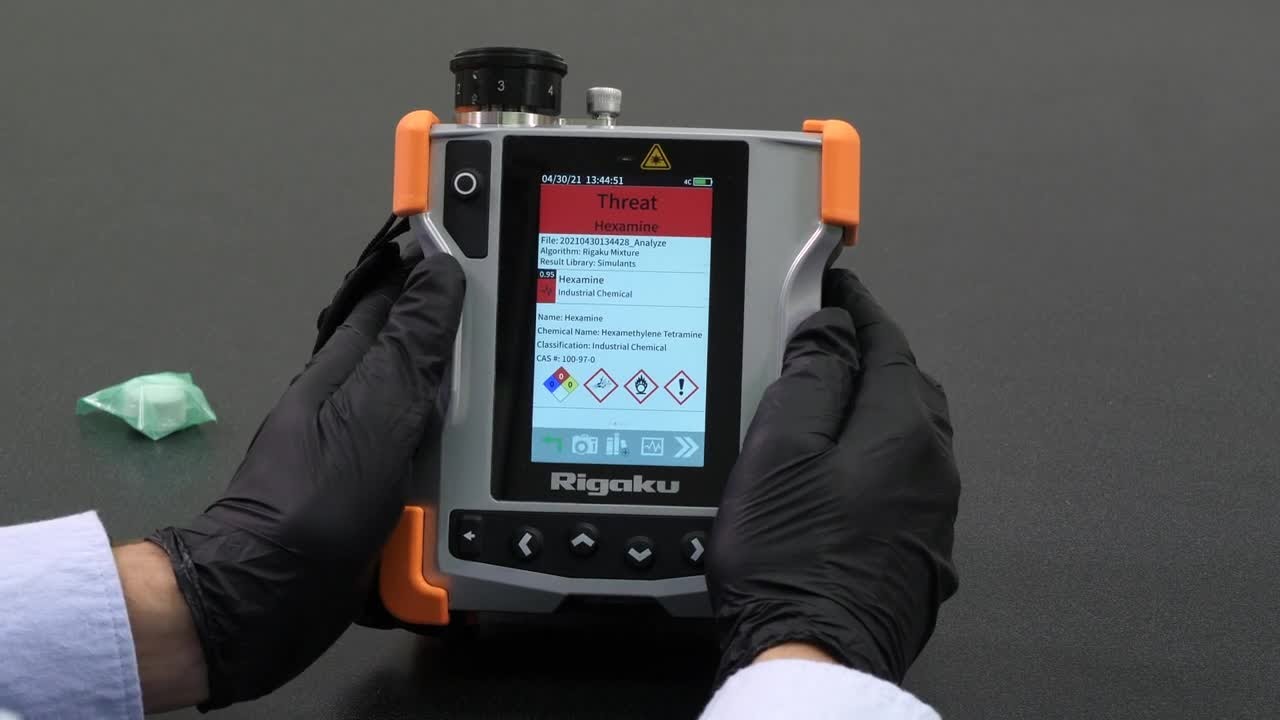

    Touchscreen or button control

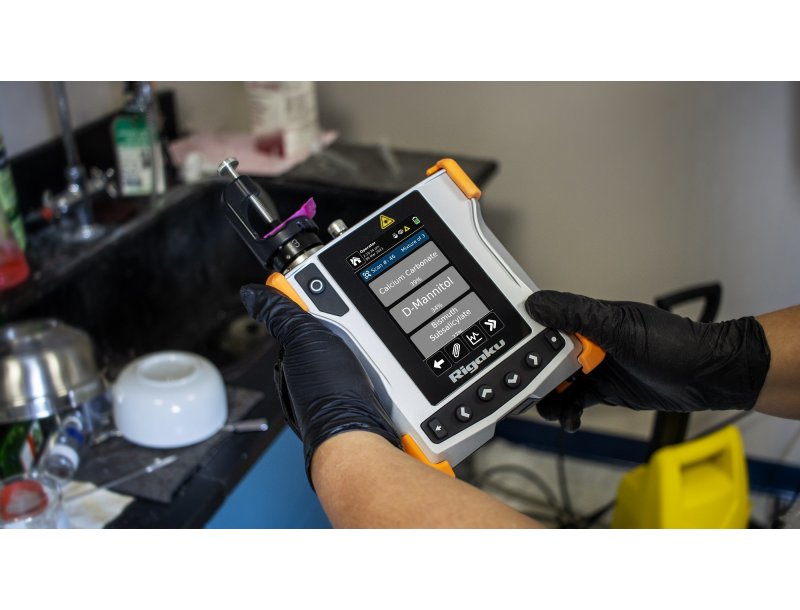

    Automatic mixture analysis of up to five components

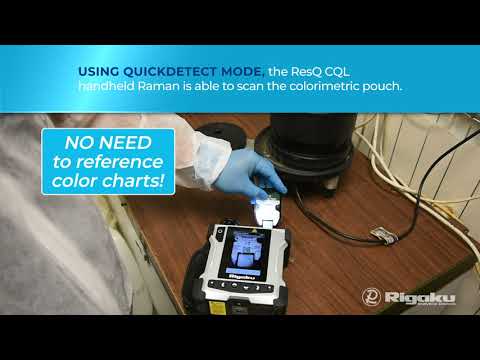

    Identify bulk and trace levels of an unknown substance (with optional QuickDetect Mode)
    Automatic precursor monitoring with 4C Technology
    Add pictorial evidence using on-board camera
    Adjustable focal position to accommodate sampling through different packaging
    Integrated fleet management capability
    Configurable library management system

    CQL Max-ID Specifications

    Size 18.5 cm x 15 cm x 7.9 cm (7.28" x 5.9" x 3.11")
    Weight 1.7 kg (3.7 lbs)
    Laser Wavelength / Max Power 1064 nm / 490 mW
    Spectral Resolution ~6 - 13 cm-1
    Spectral Range 200-2500 cm-1
    Spectrometer Type Transmissive Volume Phase Grating
    Detector TE cooled InGaAs - 512 pixel
    Operating Temperature -20 to 50°C intermittent, +40°C continuous
    Battery Type Default: 7.2 V Li-ion, 3400mAH, >5 hours / Optional: CR123a (qty: 6)
    Adjustable Laser Power (Auto Mode) 5, 10, 20, 30, 40, 50, 60, 70, 80, 90, 100%
    Adjustable Laser Power (Manual Mode) 5-490 mW in 5 mW increments
    Adjustable Exposure Time (Manual Mode) 200 to 7000 ms
    Spectral Library Size 13,000+ items
    Environmental Ruggedness IP-68 & MIL810G
    Connectivity Waterproof USB-Type C / Wi-Fi / Peer-to-Peer
    Data Output Formats .spc, .rrb, .pdf, .txt
    Manufacturer Warranty 36 months

    CQL Max-ID Options

    The following accessories are available for this product:

    Universal Adapter

    Universal adaptor can secure various sample types for easier analysis.  It snaps onto the nosecone.

    Vial Holder

    Vial holder allows the user to adjust the sample position to optimize the laser focus for different sized vials. It attaches to the front of the unit and secured with a thumb screw.

    Bottle Adapter

    Bottle adapter forms to bottles of different sizes and shapes. It snaps onto the nosecone.

    Periscope Adapter

    Periscope adapter allows the user to adjust the laser focus to reach different sample heights.  It attaches to the front of the unit and secured with a thumb screw.
