Handheld 1064 nm Raman Analyzer

    Optimum in-field analysis of general chemical threats

    The Rigaku CQL Gen-ID provides advanced analysis of more targeted chemical threats found at the border, or in clandestine and crime laboratories. The CQL Gen-ID provides a cost-effective solution for departments looking for targeted chemical threat analysis, such as narcotics, explosives, household chemicals, precursors, and more.


    CQL Gen-ID Overview

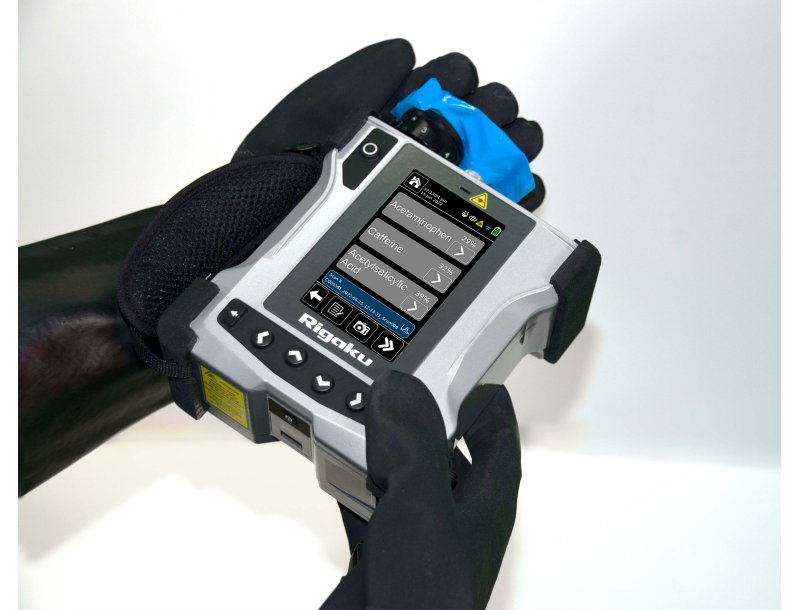

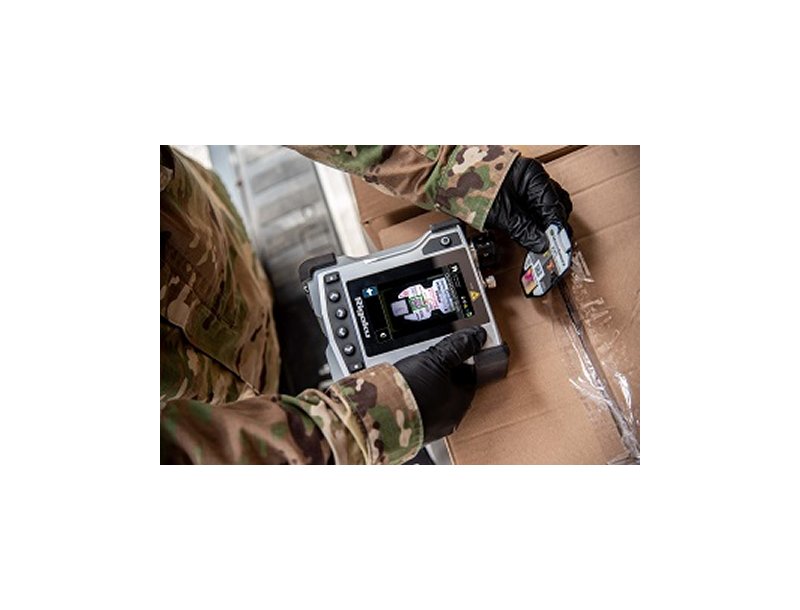

    The CQL Gen-ID handheld 1064 nm Raman analyzer has the ability to nondestructively identify unknown solids, liquids, powders, pastes, or gels - through translucent packaging.  This keeps the user safe from exposure to a harmful chemical.

    Rigaku's 1064 nm Raman advantage

    The advantage of utilizing a 1064 nm Raman laser excitation means fluorescence interference is reduced.  This is a common issue to older generation Raman devices when scanning dirty or mixed substances.  Users can expect a result every scan, in just minutes.

    Part of the U.S. DoD JPEO DR SKO program

    The CQL Gen-ID is based on Rigaku's award -winning ResQ and subsequent CQL platforms, which have been evaluated and approved by the U.S. DoD JPEO DR SKO Modernization program.  This program deploys new and improved kits of technology to Department of Defense locations around the world for characterization of suspected chemical, biological, radiological, and nuclear (CBRN) hazards.

    Unparalleled support

    The CQL series devices are designed to be cost-effective solutions for presumptive analysis of illicit drugs and is supported by Rigaku's global distribution channels that offer:

    • Comprehensive training options
    • Access to 24/7 Reachback support
    • Spectral library updates
    • Software upgrades
    • 24-month manufacturer's warranty with additional coverage options

    CQL Gen-ID Features

    How Can the CQL Gen-ID Benefit Your Response Toolkit?
    Touchscreen or button control
    Automatic mixture analysis of up to five components

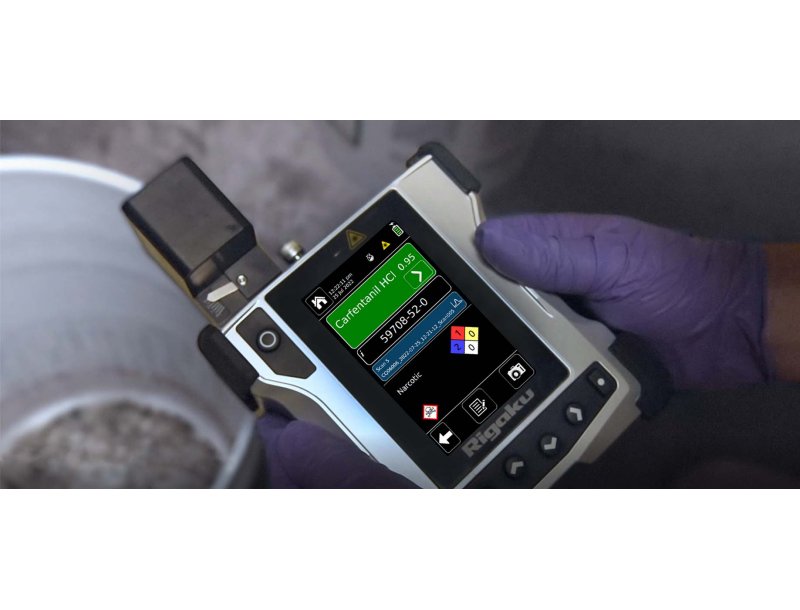

    Identify bulk and trace levels of an unknown substance (with optional QuickDetect Mode)

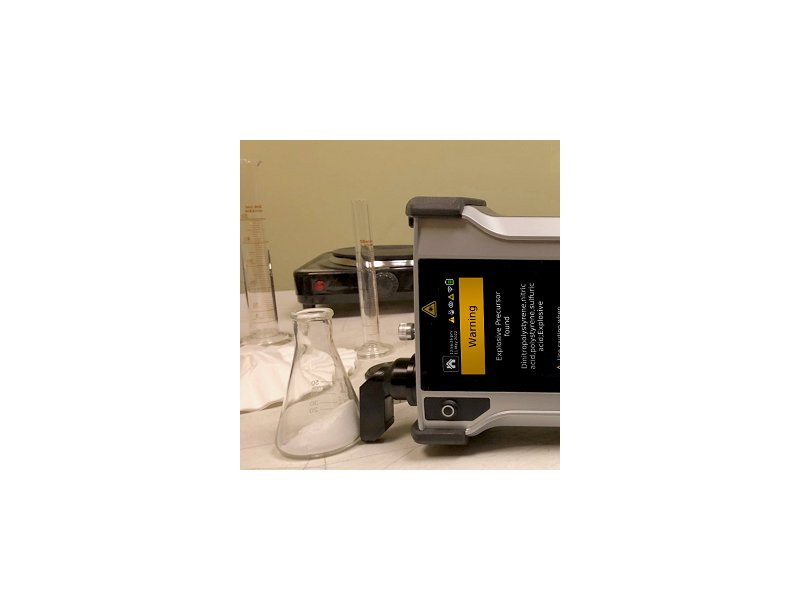

    Automatic precursor monitoring with 4C Technology
    Add pictorial evidence using on-board camera
    Adjustable focal position to accommodate sampling through different packaging
    Integrated fleet management capability
    Configurable library management system

    CQL Gen-ID Specifications

    Size 18.5 cm x 15 cm x 7.9 cm (7.28" x 5.9" x 3.11")
    Weight 1.7 kg (3.7 lbs)
    Laser Wavelength / Max Power 1064 nm / 490 mW
    Spectral Resolution ~6 - 13 cm-1
    Spectral Range 200-2500 cm-1
    Spectrometer Type Transmissive Volume Phase Grating
    Detector TE cooled InGaAs - 512 pixel
    Operating Temperature -20 to 50°C intermittent, +40°C continuous
    Battery Type Default: 7.2 V Li-ion, 3400mAH, >5 hours / Optional: CR123a (qty: 6)
    Adjustable Laser Power (Auto Mode) 5, 10, 20, 30, 40, 50, 60, 70, 80, 90, 100%
    Adjustable Laser Power (Manual Mode) 5-490 mW in 5 mW increments
    Adjustable Exposure Time (Manual Mode) 200 to 7000 ms
    Spectral Library Size 4800+ items
    Environmental Ruggedness IP-68 & MIL810G
    Connectivity Waterproof USB-Type C / Wi-Fi / Peer-to-Peer
    Data Output Formats .spc, .rrb, .pdf, .txt
    Manufacturer Warranty 36 months

    CQL Gen-ID Options

    The following accessories are available for this product:

    Universal Adapter

    Universal adaptor can secure various sample types for easier analysis.  It snaps onto the nosecone.

    Vial Holder

    Vial holder allows the user to adjust the sample position to optimize the laser focus for different sized vials. It attaches to the front of the unit and secured with a thumb screw.

    Bottle Adapter

    Bottle adapter forms to bottles of different sizes and shapes. It snaps onto the nosecone.

    Periscope Adapter

    Periscope adapter allows the user to adjust the laser focus to reach different sample heights.  It attaches to the front of the unit and secured with a thumb screw.
