Compound Semiconductors

    Metrology solutions for the development and
    manufacturing of emerging power electronics,
    optoelectronics, and 5G / 6G communication devices

    SiC, GaN, GaAs, InP, Ga₂O₃, AlN



    Process Control
    Data Analysis
    Yield Prediction
    Quality Control
    Semiconductor Menu

    Our solutions

    Metrology tools from lab to fab

    Rigaku Compound Semiconductor Solutions
    Surface contamination detection
    Metrology of thin and ultra-thin films
    Structure properties of epitaxial layers
    Inspection of epitaxial substrate defects
    Inspection of transparent wafers

    Recommended compound semiconductor metrology tools

    TXRF 3760 1200x627
    TXRF 3760: Wafer surface contamination metrology with light elements sensitivity

    This compact analytical instrument boasts rapid analysis capabilities with a high-power rotating-anode source and a liquid nitrogen-free Silicon Drift Detector. It covers a wide range of elements including light ones, ensuring accurate analysis of materials like bare silicon, silicon carbide, and non-silicon substrates, with enhanced precision for copper.

    Learn more >
    WDA-3650 1200x627
    WDA-3650: Simultaneous WDXRF spectrometer for film thickness and composition measurements on wafers

    This innovative WDXRF instrument incorporates patented "diffraction avoidance" for precise results. It offers high-sensitivity boron analysis and a solid-state, oil-free X-ray generator for reliability. Configurable for high-volume manufacturing wafer fabs, it ensures high performance, accuracy, and stability while evaluating film thickness and composition across all film types.

    Learn more >
    SmartLab SE 1200x627
    SmartLab SE: Automated multipurpose X-ray diffractometer

    This automated X-ray diffractometer features a versatile in-plane arm with a 5-axis goniometer and high-flux PhotonMax X-ray source. Equipped with HyPix-3000 HPAD detector and CBO components, it enables precise measurements and operando studies. Multiple sample stages and a multi-year warranty ensure cost-effective ownership.

    Learn more >
    XRTMICROn 1200x627
    XRTmicron: X-ray topography imaging system

    Featuring the MicroMax-007 DW dual-wavelength X-ray source and XTOP CCD cameras (5.4 μm and 2.4 μm pixels), this system ensures high brilliance and ultrahigh resolution. With a horizontal sample mount minimizing strain, it offers automatic wafer curvature correction for optimal dislocation image quality. Fully automated operation, including anode, detector, optics switch, and alignment, supports dislocation analysis on 3 to 12" wafers, compatible with wafer loaders.

    Learn more >
    TFXRD 1200x627
    TFXRD Series: XRD non-destructive analysis for full wafer mapping on near-fab applications

    This cutting-edge system features the highest precision goniometer with selectable optics, tailored for thin film XRD applications. With an XY-movable stage for mapping, it ensures efficient measurement speed. Equipped with an incident monochromator for high-resolution measurements, it supports large wafer full-mapping, accommodating up to 300 mm wafers.

    Learn more >
    XTRAIA XD-3200 1200x627
    XTRAIA XD-3200: HRXRD measurements and analysis of multi-layer films

    This non-destructive wafer analysis system specializes in multilayered materials, including epitaxial and polycrystalline films. Utilizing HRXRD, it measures thickness, composition, strain, relaxation, and structural quality. XRR measurements assess thickness, density, and roughness, ideal for blanket wafers. Users can choose between a 9 kW rotating anode or a 2.2 kW sealed X-ray generator, along with customizable X-ray optics. Compatible with cleanroom class ≤10,000 (ISO 7) environments, it offers fully automated operation on the GEM300 platform.

    Learn more >
    XHEMIS EX-2000 1200x627

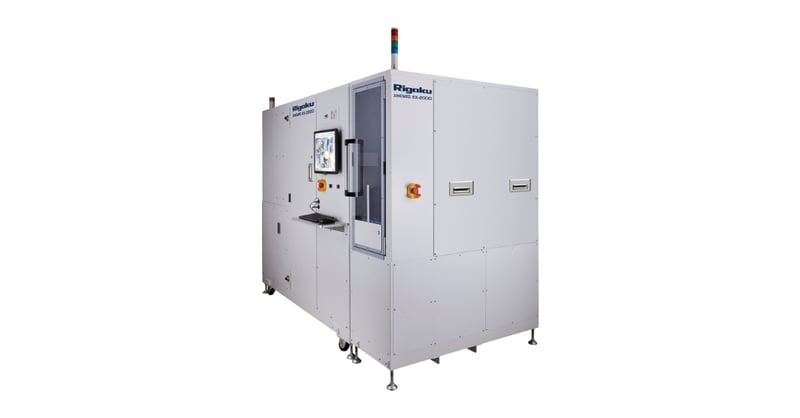

    XHEMIS EX-2000: Process development and film quality control from ultra-thin, single-layer films to multi-layer stacks

    This system offers simultaneous evaluation of film thickness, density, and roughness, ensuring comprehensive analysis. With high-throughput capabilities for wafer measurements, it provides absolute results through XRR without calibration standards. Enabling full-wafer mapping and high-speed measurements via XRF, it delivers high resolution and precision across thicknesses ranging from Ångstroms to microns, compatible with wafers sized 200 mm, 150 mm, 125 mm, and 100 mm.

    Learn more >
