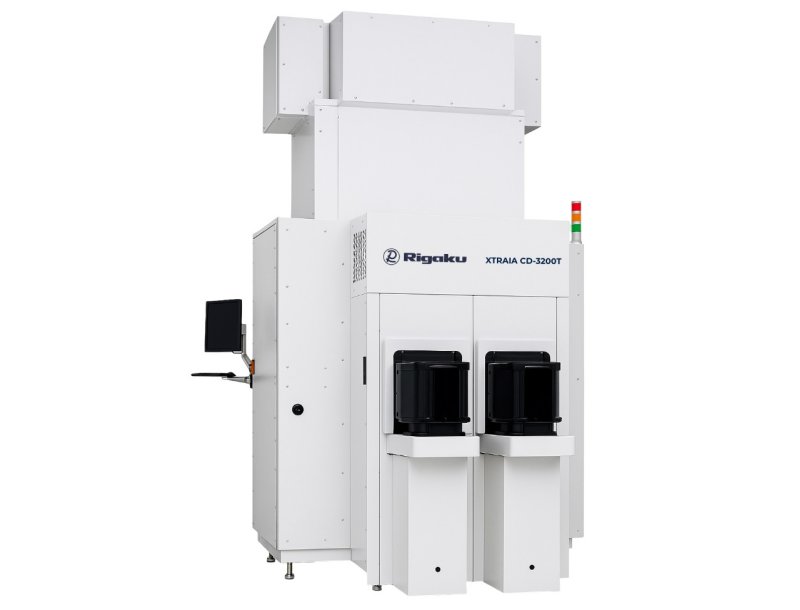

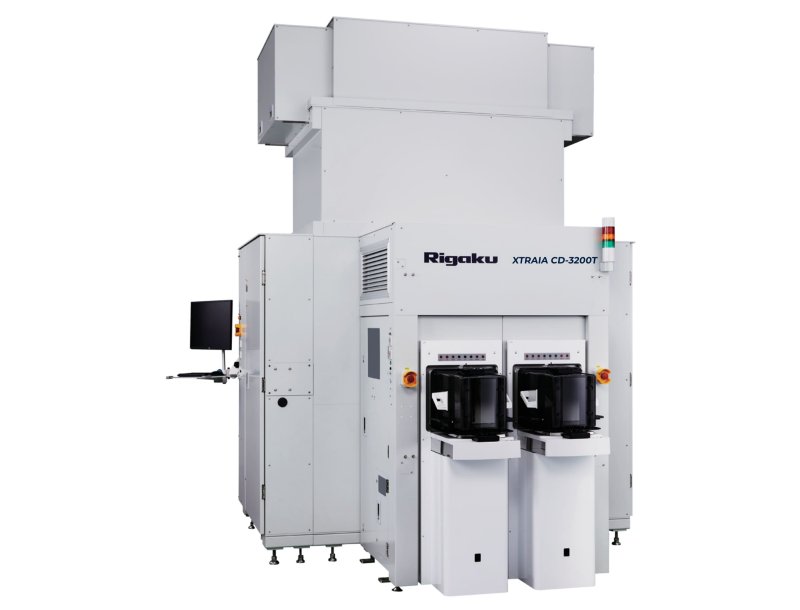

XTRAIA CD-3200T

Advanced transmission X-ray critical dimension metrology tool

  • Transmission SAXS for high-aspect-ratio nanostructures
  • Full-wafer mapping with subnanometer resolution
  • Nondestructive analysis of shape, depth, and tilt
  • Supports DRAM, 3D-NAND, FinFET, and EUV resist profiling

The XTRAIA CD-3200T delivers advanced critical dimension metrology using transmission small angle X-ray scattering (TSAXS). Designed for nondestructive analysis of high-aspect-ratio features, the system provides accurate measurements of nanostructure depth, sidewall angles, and 3D profiles without sample modification.

Its full-wafer mapping capabilities and compatibility with both organic and inorganic materials make it an ideal tool for evaluating advanced memory structures and pattern fidelity. The system’s immediate measurement capability and high-throughput performance enable streamlined CD control across production and development environments.

XTRAIA CD-3200T new

XTRAIA CD-3200T Overview

Engineered for manufacturers of memory and logic devices, the XTRAIA CD-3200T applies TSAXS to deliver high-precision, non-destructive analysis of nanostructures. It simplifies quality monitoring by supporting a wide range of materials and patterns without requiring measurement libraries or pre-treatment.

The XTRAIA CD-3200T is an advanced metrology tool designed for precise characterization of nanostructures in semiconductor manufacturing. It uses transmission small angle X-ray scattering (TSAXS) technology for accurate critical dimension (CD) measurements, including sidewall angles.

Optimized for high-throughput applications, it enables full-wafer mapping with sub-nanometer resolution and can evaluate both organic and inorganic materials, providing reliable data for quality control. Its high sensitivity and innovative design make the XTRAIA CD-3200T essential for precision and efficiency in semiconductor production.

XTRAIA CD-3200T Features

Uses TSAXS for 3D structural characterization
Enables analysis of depth, tilt, shape, and CD uniformity
Compatible with organic resists (no shrinkage)
Pattern recognition and full-wafer mapping support
High sensitivity for HAR structures (e.g., holes, pillars)
Immediate, library-free measurement

XTRAIA CD-3200T Specifications

Technique Transmission small angle X-ray scattering (TSAXS)
Benefit CD profiling of HAR structures with subnanometer resolution
X-ray source Rotating anode (Mo Ka, 17.4 keV)
X-ray optics  Multilayer mirror optics
X-ray detector HyPix 6000HE (2D)
Sample compatibility Patterned wafers, organic and inorganic materials
Attributes High-aspect ratio metrology; deep-hole, 3D structure profiling
Features Pattern recognition, full-wafer mapping
Options GEM300 software, E84/OHT compatibility
Measurement results CD profile, depth, shape, in-plane tilt, full-wafer CD mapping

XTRAIA CD-3200T Options

  • GEM300 compliance package
  • E84/OHT automation support
