CQL Narc-ID

Handheld 1064 nm Raman Analyzer

Presumptive ID of illicit narcotics at your fingertips

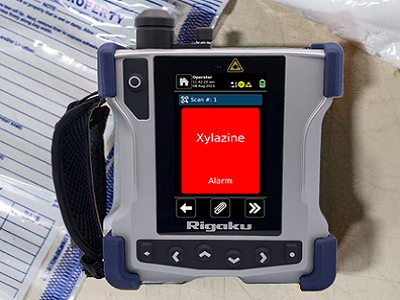

The handheld Rigaku CQL Narc-ID 1064 nm Raman analyzer provides presumptive identification of narcotics, precursor chemicals, and cutting agents - even in non-visible amounts. Designed for counter-narcotics agencies, law enforcement, crime laboratories, prison facilities, customs agencies, or public safety efforts, the CQL Narc-ID can have a direct impact on protecting communities from dangerous chemicals that currently pervade through the illicit drug supply market.

We offer Grant Assistance - at NO COST to you!

PGH



CQL Narc-ID Overview

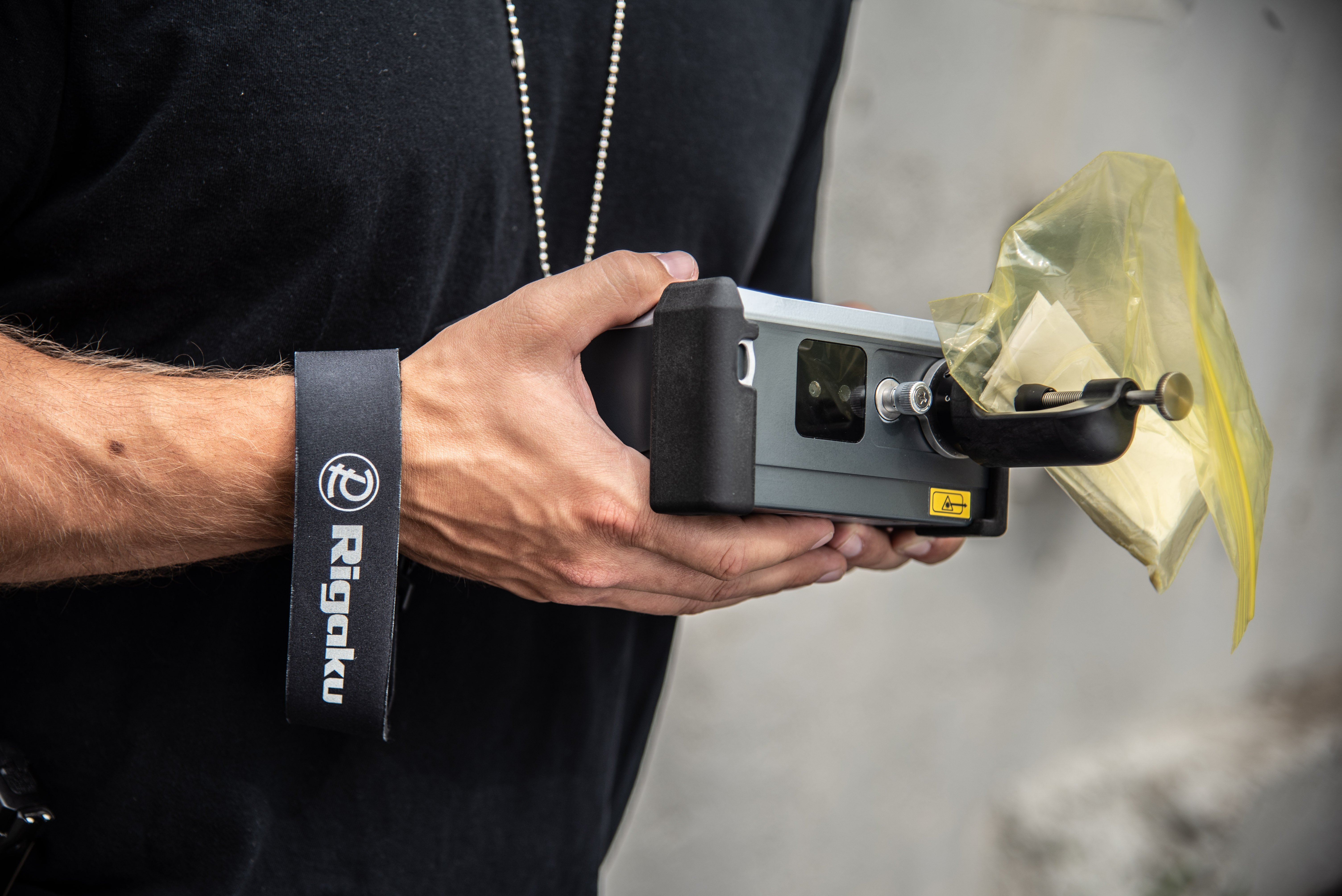

Designed specifically for presumptive analysis of narcotics, the CQL Narc-ID handheld 1064 nm Raman analyzer has the ability to nondestructively identify unknown solids, liquids, powders, pastes, or gels - through translucent packaging.  This keeps the user safe from exposure to a harmful chemical, such as fentanyl. Users benefit from a smaller, focused, specialized library, specialized algorithms with an optimized result output, as well as the ability to easily create PDF reports for evidentiary needs.

Rigaku's 1064 nm Raman advantage

The advantage of utilizing a 1064 nm Raman laser excitation means fluorescence interference is reduced.  This is a common issue to older generation Raman devices when scanning dirty or mixed substances.  Users can expect a result every scan, in just minutes.

Recognized by SWGDRUG

The U.S. Scientific Working Group for the Analysis of Seized Drugs (SWGDRUG) recognizes Raman spectroscopy as a Category A analysis technique.  Category A techniques provide the highest level of selectivity through structural information.  When a Category A technique is utilized, at least one other technique (from Category A, B or C) shall be used to support the identification.

With the addition of QuickDetect Mode, users gain the benefit of utilizing automated colorimetrics for detecting non-visible substances.  This is considered a Category C technique by SWGDRUG, and provides the second, required analysis method.

CQL Narc-ID Features

How Can the CQL Narc-ID Update Your Field Analysis Toolkit?
Touchscreen or button control
Identify bulk and trace levels of an unknown substance
Identify bulk and trace levels of an unknown substance (with optional QuickDetect Mode)
Add pictorial evidence using on-board camera
Integrated fleet management capability
Configurable library management system

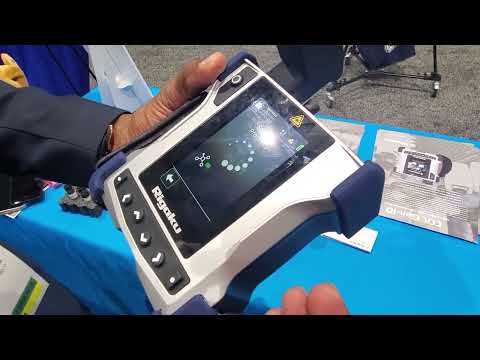

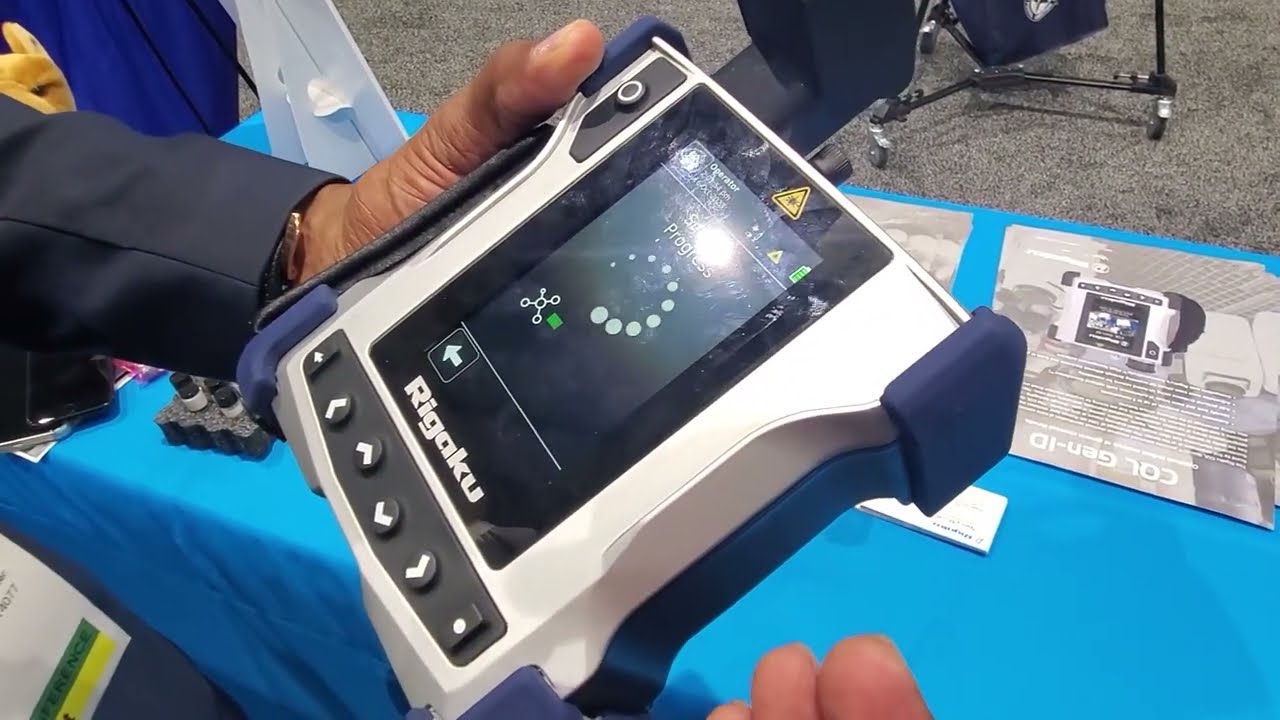

CQL Narc-ID Videos

CQL Narc-ID Specifications

Size 18.5 cm x 15 cm x 7.9 cm (7.28" x 5.9" x 3.11")
Weight 1.7 kg (3.7 lbs)
Laser Wavelength / Max Power 1064 nm / 350 mW
Spectral Resolution ~6 - 13 cm-1
Spectral Range 200-2500 cm-1
Spectrometer Type Transmissive Volume Phase Grating
Detector TE cooled InGaAs - 512 pixel
Operating Temperature -20 to 50°C intermittent, +40°C continuous
Battery Type 7.2 V Li-ion, 3400mAH, >5 hours
Adjustable Laser Power (Auto Mode) 5, 10, 25, 50, 75, 100%
Spectral Library Size 1100+ items
Environmental Ruggedness IP-68 & MIL810G
Connectivity Waterproof USB-Type C / Wi-Fi / Peer-to-Peer
Data Output Formats .spc, .rrb, .pdf, .txt
Manufacturer Warranty 24 months

CQL Narc-ID Options

The following accessories are available for this product:

Bottle Adapter

Bottle adapter forms to bottles of different sizes and shapes. It snaps onto the nosecone.

Periscope Adapter

Periscope adapter allows the user to adjust the laser focus to reach different sample heights.  It attaches to the front of the unit and secured with a thumb screw.

Universal Adapter

Universal adaptor can secure various sample types for easier analysis.  It snaps onto the nosecone.

Vial Holder

Vial holder allows the user to adjust the sample position to optimize the laser focus for different sized vials. It attaches to the front of the unit and secured with a thumb screw.

CQL Narc-ID Application Notes

The following application notes are relevant to this product
