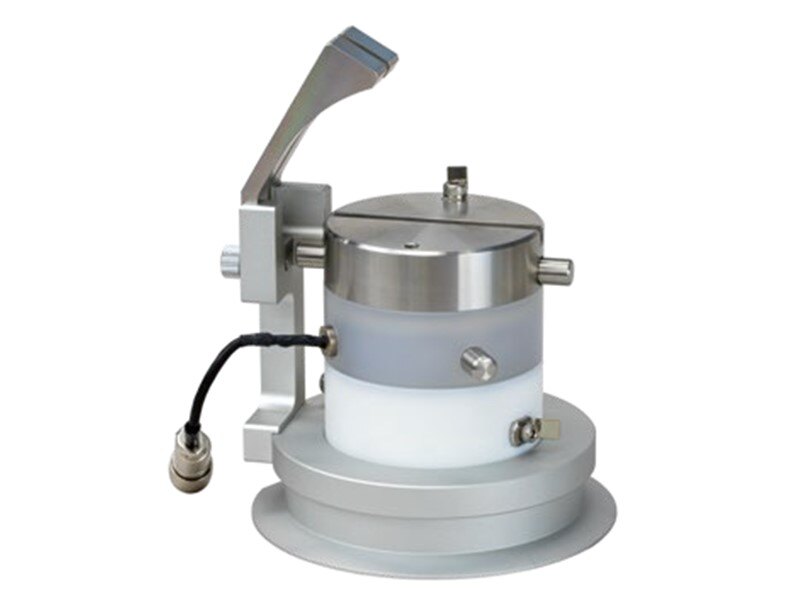

Solid-State Battery Cell Attachment

Battery Type: All solid-state battery (SSB)

Primary Usage: In Operando XRD battery analysis

XRD Tool Support: SmartLab, SmartLab SE

Stage/Attachment Description: Holds the individual components (anode, cathode, solid electrolyte, etc.) of a solid-state battery (SSB) to form a working cell. No encapsulation or packaging materials required (self-assembly via the fixture). Applies adjustable static pressure to compress components together and enhance performance during cycling. Enables In Operando XRD analysis of a complete and functioning rechargeable solid-state cell.

XRD Measurement Type: Reflection

Features:

• Air-tight
• Temperature range: Ambient (room)
• Supports electrical interface to select third party potentiostats for fully-automated In Operando testing
• Supports automatic stage recognition & auto-alignment

Specifications:

• Incident angle (θ): 5˚ or higher
• Measurement range (2θ): 10˚ to 120˚
• Sample size: φ10 mm or φ16 mm, sample thickness
  2 mm or less
• Maximum pressure loading: 1 kN

Part Number: A00012150
