Replicated optics
For EUV And X-ray Radiation
Custom designed optics of various shapes for EUV and X-ray facilities and laboratory sources
RITE manufactures and sells Total Reflection X-ray optics. Total Reflection X-ray Optics are specially designed to satisfy both the evolving EUV/XUV industry and the more established hard and soft X-ray applications.
Replicated optics Overview
RITE has mastered a unique manufacturing technology called replication. This manufacturing technique enables the production of X-ray optics with unique optical features such as low weight, high surface precision (low slope error) and extremely low micro-roughness. Another interesting attribute of Total Reflection Optics is the use of various metallic layers as coatings. The most commonly used materials are Ni, Au, Mo and Ru

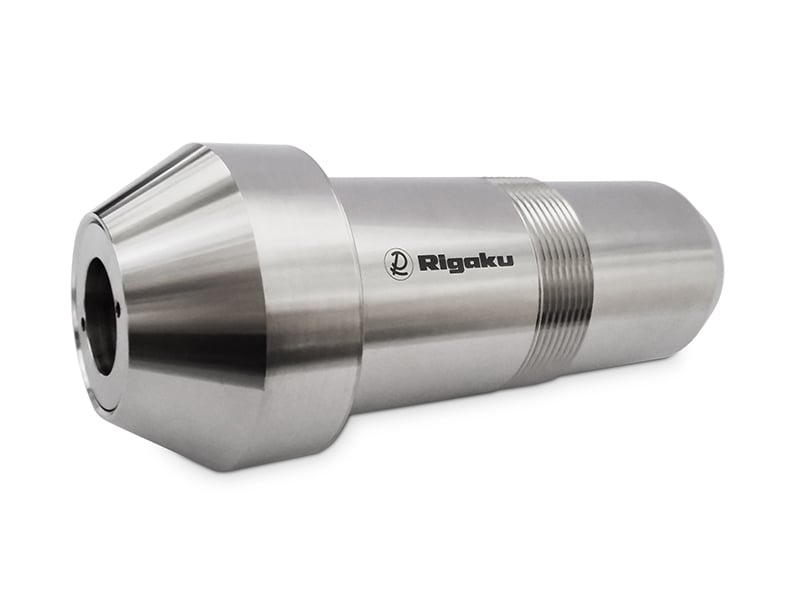

Ellipsoidal focusing optics

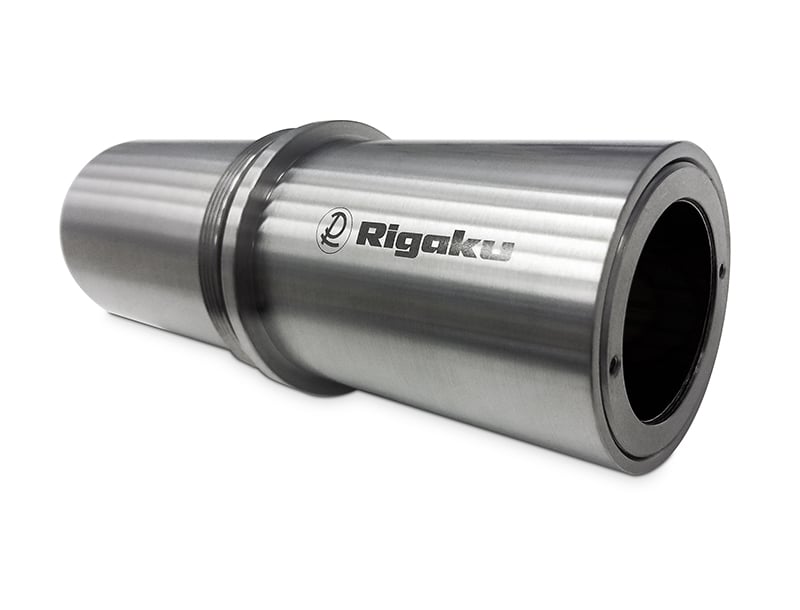

Parabolic collimating optics
Au vs. Ru, up to 2x higher reflectivity using ruthenium layer
Replicated optics Features
- Spectral range: EUV (60 – 200 eV)
- Soft X-ray (200 – 2000 eV)
- Hard X-ray (2000 – 10000 eV)
Length (L): 10 – 130 mm
