Custom Optics

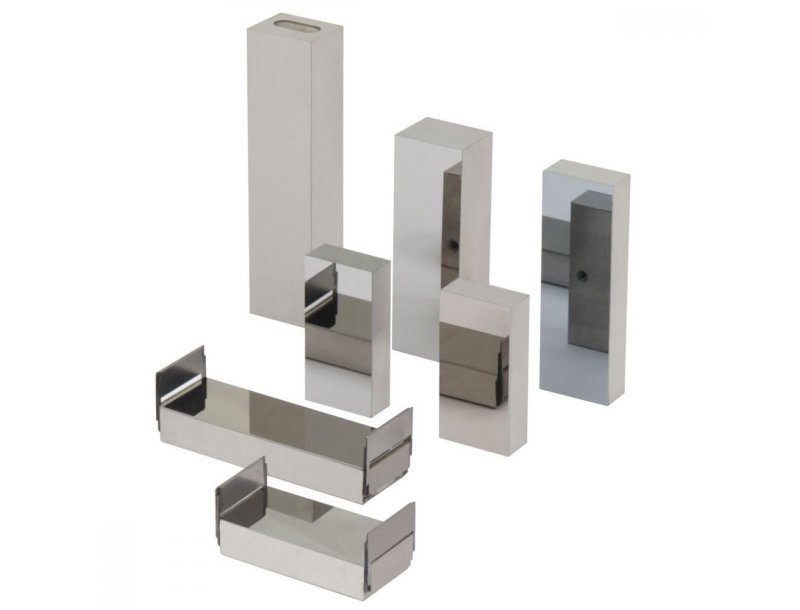

Custom Confocal Max-Flux Focusing Optics for Beamline Applications
Custom designed optics for end-station beam focusing and conditioning
Rigaku's family of Confocal Max-Flux® (CMF) optics offers the best performance of any two dimensional beam conditioning optics available today. CMF Optics are considered by many to be one of the most significant recent advances in X-ray optic design. We have the ability to make custom designs using the double bounce optical configuration.
Custom Optics Overview
Extensive capability and experience
Rigaku-Osmic has been making optics for the sychroton community for many years and our large format coating system gives us the unique ability make long mirrors with complex graded multilayer structures.
Focusing and collimating multilayer optics
We can design special end station optics that will deliver the best beam structure and energy resolution for your specific experimental needs. The CMF type optic would be a good candidate for a need to bring a finer focus to your specimens.
Custom Optics Features
Custom Optics Specifications
| Technique | For X-ray diffraction and related instrumentation | |
|---|---|---|
| Benefit | Unique ability make long mirrors with complex graded multilayer structures | |
| Technology | Confocal Max-Flux focusing optics | |
| Attributes | Variety of applications | |
| Options | Custom designed | |
