Confocal Max-Flux SAXS

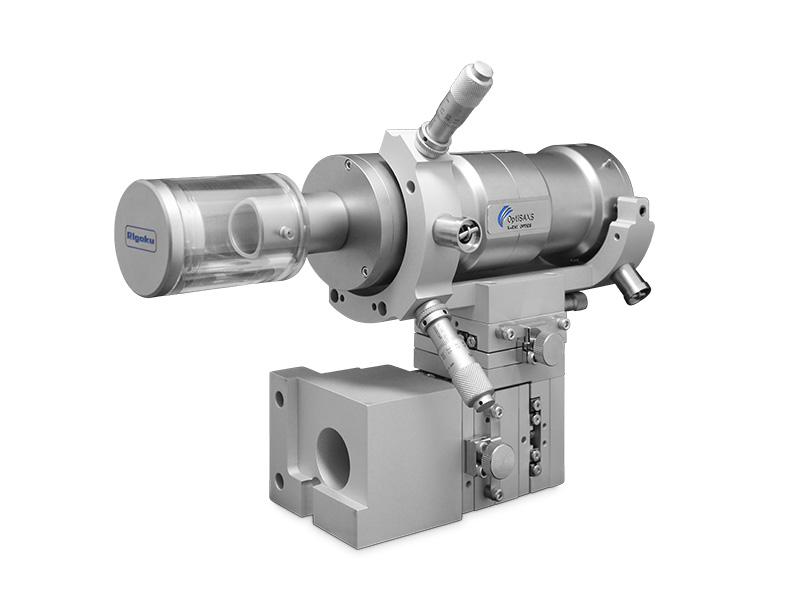

    Specialized Optic for Use In SAXS Applications

    Special Confocal Max-Flux optic designed for use in small angle scattering

    Confocal Max-Flux® Beam Conditioning Optics for X-ray diffraction offer high intensity, high flux, high flux density, and high resolution. The unique side-by-side optical geometry creates a compact assembly that can simultaneously monochromatize and either focus or collimate a divergent X-ray beam

    Confocal Max-Flux SAXS Overview

    Confocal Max-Flux® with Arc)Sec® Technology

    When the highest optical precision is required, proprietary Arc)Sec® technology is combined with Confocal Max-Flux® optics to provide multilayer optics with < 4 arcsec precision in optical figure. Arc)Sec® Confocal Max-Flux® optics provide increased flux and decreased background with very uniform beam profiles, capable of achieving beam spots under 5 microns diameter.

    Design Flexibility

    Monochromatize while simultaneously achieving one of the following:

    • Focus a beam from one point to another – a significant increase in monochromatic flux density at the focal point
    • Collimate a beam from a point source to illuminate a specific area
    • Focus a parallel beam – a significant increase in monochromatic flux density at the focal point

    As the longest operating commercial manufacturer of multilayer optics, RIT’s Confocal Max-Flux® optics provide the highest flux, cleanest spectrum and most uniform beam profile of any multilayer optics available today. Customizable bandwidth can be achieved by configuring the optic and multilayer parameters.

    Confocal Max-Flux SAXS Features

    Increased flux with decreased background noise
    Designed and controlled beam divergence
    Improved final resolution
    Shorter data collection time
    Designed to focus an X-ray beam at either the sample or detector
    Resolution and angular range of the measurement can be simultaneously improved
    Robust easy to use mounting hardware customized to fit your instrument

    Confocal Max-Flux SAXS Specifications

    Technique For small angle X-ray scattering instrumentation
    Benefit High flux and low divergence
    Technology Multilayer confocal optics
    Core attributes Excellent Kα/Kβ ratio
    Core options Custom designed
