Sample sealer / Sample crimper



Multi Press

Multipress

The Multi Press is a sample pan shaping tool with three functions: sample crimper, sample sealer, and high-pressure sample sealer.

The head is changed depending on the application.

*For Al pan φ5×2.5 mm, Sealable Al pan and High-pressure sealable pan

Die set

Die sets can be changed to support sample pans of three types: Al pan, sealable Al pan, and high-pressure sealable pan (SUS-SUS).

daiset1 daiset2 daiset3
Aluminum crimping die set Aluminum sealing die set High-pressure sealing die set

Use as sample crimper.
*For Al pan φ5×2.5 mm

Use as sample sealer.
*For sealable Al pan
Use when sealing of high-pressure sealable pan.
*For high-pressure sealable pan



Specifications

Dimensions

110(W) x 208(H) x 200(D) mm

Mass

2.6 kg

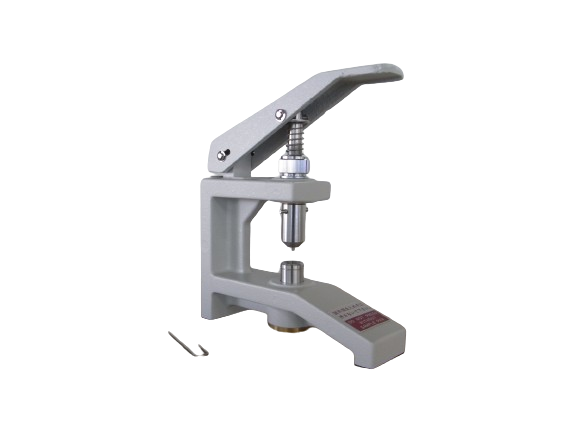

Sample crimper

Samplecrimper

Improves the thermal contact between the sample and the sensor plate.
*For Al pan φ5×2.5 mm

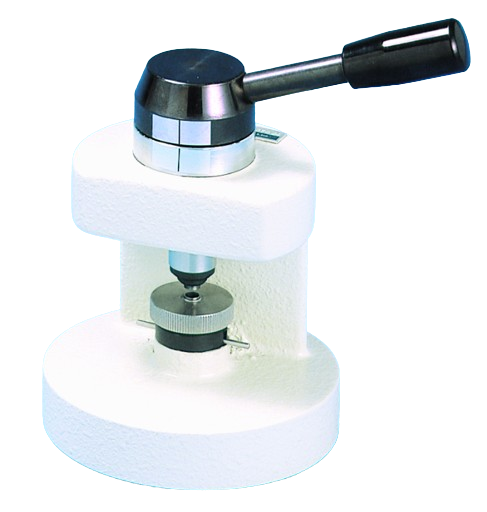

Sample sealer

Samplesealer

Used to tightly seal liquid samples or samples that evaporate, sublimate or dehydrate during measurement. Pressure capacity is 0.3 MPa (3 atm).
*For Sealable Al pan

Photo of Sample sealer / Sample crimper
