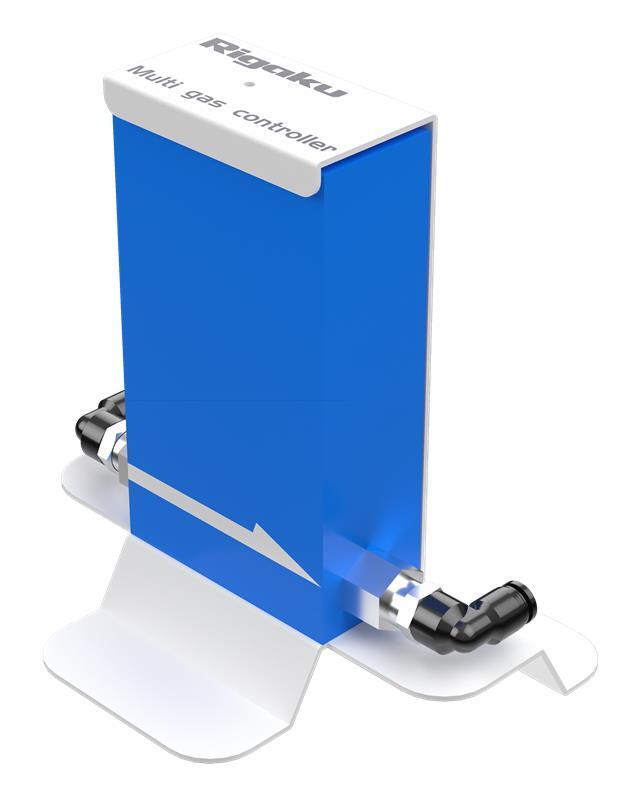

Multi gas controller
The flow rate can be programmed in synchronization with the temperature program. Up to four different gases can be freely selected and changed as required in measurement/analysis software.
Compatible instrument: Thermo plus EVO3 series (DSCvesta2, STAvesta)
Specifications
| Flow rate | Minimum: 50 mL/min Maximum: 1000 mL/min Setting resolution: 1 mL/min |
| Compatible gases | Nitrogen, air, oxygen, argon and helium |
| Recommended supply gas pressure | Approx. 0.1-0.3MPa |
| Number of channels | 1 channel per unit Expandable up to 8 channels (8 units) |
| Power requirements | 1Ø, AC100V to 240V, 50/60Hz, less than 0.5A |
| Dimensions | 160(W) x 160(H) x 115(D) (mm) |
| Weight | 1.6 kg |
Compliant with CE marking
Compatible Products
DSCvesta2
DSC with industry-first self-diagnostic feature and industry's highest temperature range
View more
Sample Observation DSCvesta2
Allows real-time observation and recording of sample changes from room temperature up to 725°C
View more
STAvesta
Thermogravimetric-Differential Scanning Calorimeter
The first in the industry with a self-diagnostic function, enabling simultaneous TG (weight change) and DSC (thermal energy) measurements
Sample Observation STAvesta
Sample observation STA
TG-DSC system that allows real-time observation and recording of sample changes during thermal analysis
STAvesta/HUM
Humidity-controlled STA
The compact humidity generator is connected to the STA (TG-DSC) for measurements under constant relative humidity water vapor atmosphere
Refrigerated Cooling STAvesta
Low temperature STA
STA system equipped with a refrigerated cooling furnace capable of low-temperature measurements down to -40°C
