Cooling units for DSC8231
We have 3 (three) different types of cooling units available to meet your purpose of the measurement and temperature range.
All cooling units can be easily installed and removed, they can be readily exchanged according to your measurement.
|
Cooling unit |
LN2 auto-filling cooling |
LN2 siphon cooling |
Bath circulator cooling |
|
|
|
|
|
Liquid nitrogen is used as a cooling medium. The unit controls the supply of low temperature nitrogen gas according to the temperature program. Suitable for continuous heating / cooling measurements in a wide range. |
Liquid nitrogen is supplied from a siphon connected to a dedicated container to the furnace unit. Suitable for heating measurements starting from low temperatures. |
The unit can be connected to the circulator for continuous heating / cooling measurements. |
|
|
Measurement temperature range |
-130°C to 500°C |
-150°C to 500°C |
0°C to 500°C |
|
Heating rate (Max) |
100°C/min |
20°C/min |
20°C/min |
|
cooling rate/ cooling time (Max) |
10°C/min (to -50°C) |
RT to -150°C |
10°C/min (to 50°C) |
|
External dimensions/ weight |
(Controller) |
φ480×H940 mm 25 kg |
W230×D390×650 mm |
|
Power supply |
Single phase 100 VAC, 50/60 Hz, 8 A 1 plug with grounding |
Single phase 100 VAC, 50/60 Hz, 13 A 1 plug with grounding |
Single phase 100 VAC, 50/60 Hz, 15 A 1 plug with grounding |
|
Note |
Dewar capacity: 30 L |
― |
Circulating fluid: JULABO Thermal H5 |
Compatible Products

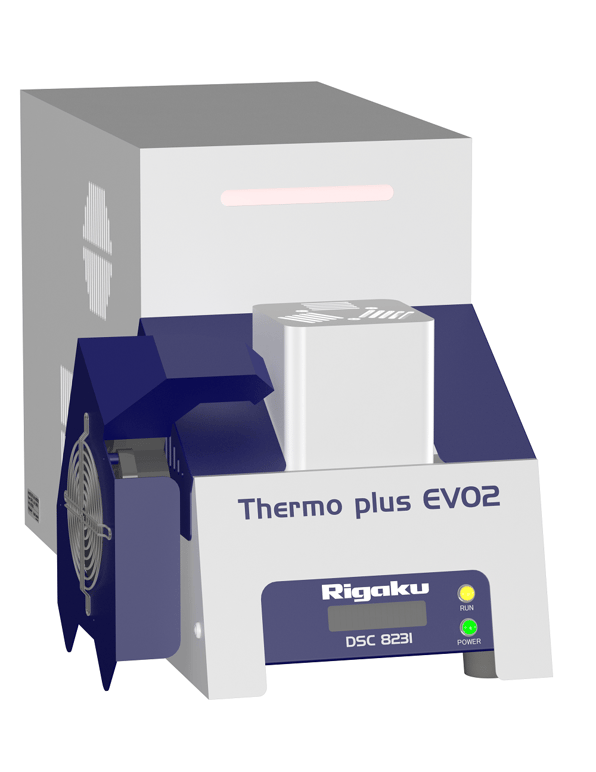

DSC8231
