M54 X-ray Monoblock
50 kV 4 W X-ray source
Lightweight and compact design: only 365 grams

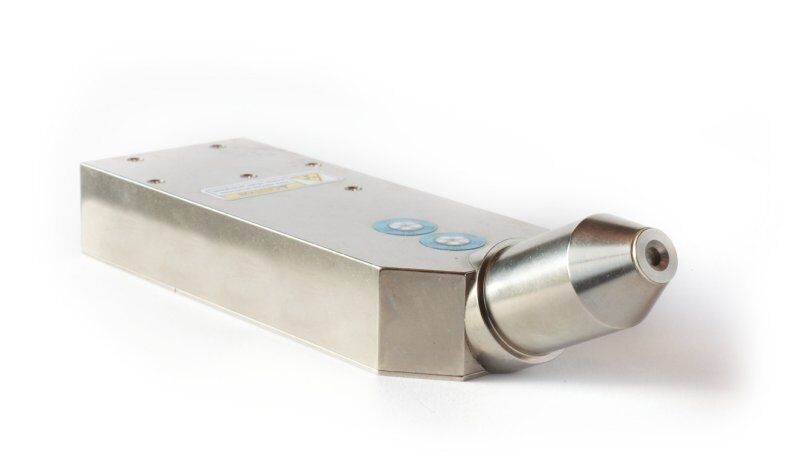

The M54 X-ray monoblock is a fully integrated miniature 50 kV, 4 W X-ray generator designed specifically to be used as component of a handheld, portable, or benchtop X-ray instrument. The source includes a miniature sealed X-ray tube with a transmission-type end window, a high voltage power supply, and control electronics contained in a compact grounded enclosure.
M54 X-ray Monoblock Overview
Applications
XRF materials analysis
- Alloy and metal sorting
- ROHS and ELV compliance
- Environmental analysis
- Forensic science
- Mining and geology
- Art and archeology
- Coating thickness
- Lead detection
- Quality control
- Precious metal verification
X-ray imaging
- Medical, dental, small animal
- NDT
- Security, contraband
M54 X-ray Monoblock Features
Compact design
Ideal for handheld, portable and benchtop instruments
Low power consumption
Compatible with battery operation
Easy to operate
Analog control interface
Integrated design
No high voltage cables
Machined metal enclosure
Precision mounting and alignment
Patented X-ray Omnishield™
360° lightweight radiation shielding
Wide cone angle
110° full width X-ray cone angle
Threaded adapter for collimated applications – optional
M54 X-ray Monoblock Specifications
Tube type | Metal-ceramic | |
---|---|---|
Tube voltage | 5 kV - 50 kV | |
Tube current | 0 - 200 μA | |
Tube power | 4 watts maximum | |
Cathode type | Tungsten filament | |
X-ray window | Be, 125 μm | |
Target type | Transmission | |
Available targets | Au, Ag, Rh, W | |
Depth to focal spot | 2.4 mm | |
X-ray cone angle | 110° | |
Input voltage | 5 - 12 VDC | |
HV polarity | Grounded anode | |
HV stability | < 0.1% | |
Electrical insulation | Silicone potting | |
Radiation shielding | Self-shielded | |
Operating temp (case) | -10°C to 60°C | |
Storage temp | -25°C to 85°C | |
Cooling | Air cooled | |
Ambient humidity | 90% max (non-condensing) | |
Weight | Approx. 365 g. |
M54 X-ray Monoblock Options
The following accessories are available for this product:
