M25 X-ray Monoblock
50 kV 4 W X-ray source
Lightweight and compact design: only 385 grams

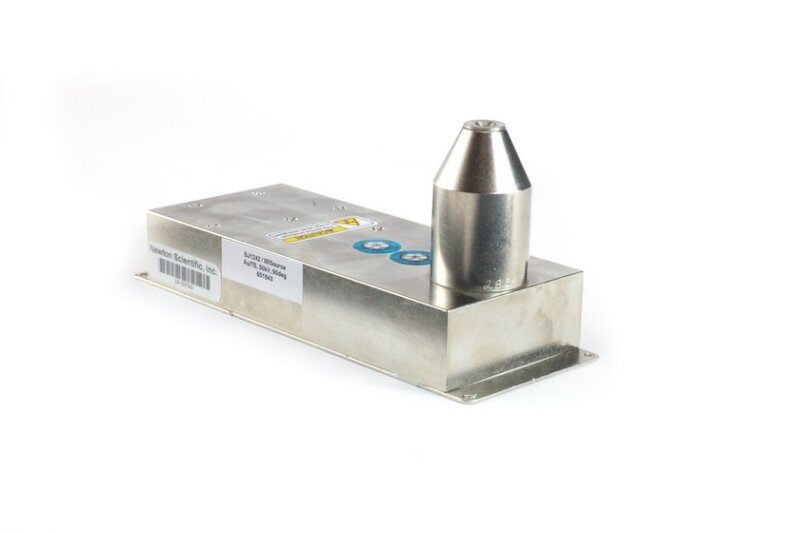

The M25 X-ray monoblock is a fully integrated miniature 50 kV, 4 W X-ray generator designed specifically to be used as component of a handheld, portable, or bench top X-ray instrument. The source includes a miniature sealed X-ray tube with a transmission-type end window, a high voltage power supply, and control electronics contained in a compact grounded enclosure.
M25 X-ray Monoblock Overview
Applications
XRF materials analysis
- Alloy and metal sorting
- ROHS and ELV compliance
- Environmental analysis
- Forensic science
- Mining and geology
- Art and archeology
- Coating thickness
- Lead detection
- Quality control
- Precious metal verification
X-ray imaging
- Medical, dental, small animal
- NDT
- Security, contraband
M25 X-ray Monoblock Features
Compact design
Ideal for handheld, portable and bench-top instruments
Low power consumption
Compatible with battery operation
Integrated design
No high voltage cables
Machined metal enclosure
Precision mounting and alignment
Patented X-ray Omnishield™
360° lightweight radiation shielding
Wide cone angle
110° full width X-ray cone angle
Threaded adapter for collimated applications – optional
M25 X-ray Monoblock Specifications
| Tube type | Metal-ceramic | |
|---|---|---|
| Tube voltage | 5 kV – 50 kV | |
| Tube current | 0 - 200 μA | |
| Tube power | 4 watts maximum | |
| Cathode type | Tungsten filament | |
| X-ray window | Be, 125 μm | |
| Target type | Transmission | |
| Available targets | Au, Ag, Rh, W | |
| Depth to focal spot | 2.4 mm | |
| X-ray cone angle | 110° | |
| Input voltage | 5-12 VDC | |
| HV polarity | Grounded anode | |
| HV stability | < 0.1% | |
| Electrical insulation | Silicone potting | |
| Radiation shielding | Self-shielded | |
| Operating temp (case) | -10 C to 60°C | |
| Storage temp | -25°C to 85°C | |
| Cooling | Air cooled | |
| Ambient humidity | 90% max (non-condensing) | |
| Weight | Approx. 385 g | |
M25 X-ray Monoblock Options
The following accessories are available for this product:
Contact Us
Whether you're interested in discussing a custom project, getting a quote, need technical support, or simply have a question, we're here to help.
