M237 X-ray Monoblock
70 kV, 10 W X-ray monoblock

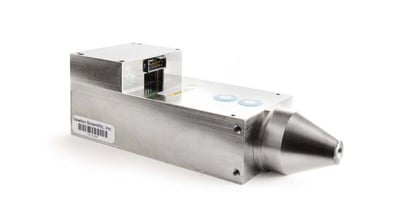

The M237 X-ray monoblock is a fully integrated 70 kV, 10 W X-ray generator designed specifically to be used as component of a handheld, portable, or bench-top X-ray instrument. The source includes a miniature sealed X-ray tube with a transmission-type end window, a high voltage power supply, and control electronics contained in a compact grounded enclosure.
M237 X-ray Monoblock Overview
Applications
X-ray imaging
- Medical and dental imaging
- Veterinary imaging
- NDT
- Security, contraband
XRF materials analysis
- PMI, including rare earth metals
- ROHS and ELV compliance
- Environmental analysis
- Quality control
- Coating thickness
- Art and archeology
- Mining and geology
- Forensic science
- Precious metal verification
M237 X-ray Monoblock Features
Optimized for X-ray imaging and high-energy XRF applications
Compact, lightweight design
Ideal for portable and benchtop instruments
Low power consumption
Compatible with battery operation
Fully machined metal enclosure
Precision mounting and alignment
Patented X-ray Omnishield™
Self-shielded with lightweight radiation shielding
Wide cone angle
110° full width standard X-ray cone angle
M237 X-ray Monoblock Specifications
| Tube type | Metal-ceramic | |
|---|---|---|
| Tube voltage | 35 - 70 kV Custom voltage ranges available (from 15 kV to 80 kV) |
|
| Tube current | 5 - 200 μA | |
| Tube power | 10 watts maximum | |
| Cathode type | Tungsten filament | |
| X-ray window | Beryllium | |
| Target type | Transmission | |
| Available targets | Au, Ag, Rh, W | |
| Depth to focal spot | 2.4 mm | |
| X-ray cone angle | 110° | |
| Input voltage | 11-12 VDC | |
| HV polarity | Grounded anode | |
| HV stability | < 0.1% | |
| Electrical insulation | Silicone potting | |
| Radiation shielding | Self-shielded | |
| Operating temp (case) | -10°C to 60°C | |
| Storage temp | -25°C to 85°C | |
| Cooling | Air cooled | |
| Ambient humidity | 30 to 90% | |
| Weight | < 700g | |
