Tablet Crystallinity Analysis by X-ray CT

About the sample: Amorphous API tablets

Amorphous API (Active Pharmaceutical Ingredients) can increase the dissolution rate and enhance drug release. It improves the bioavailability and bioactivity of solid APIs and offers new opportunities to design more effective and stable medications. However, many APIs are prone to crystallize, and it can be challenging to keep them in an amorphous state. X-ray CT (computed tomography) can visualize crystallization of such APIs non-destructively to understand how crystallization occurs and quantify the crystalline phase.

Analysis procedure

1. In this example, amorphous fenofibrate tablets spiked with crystalline fenofibrate were scanned using a submicron-resolution CT scanner, nano3DX.
2. The crystalline phase was segmented in the CT images.
3. The crystallinity was calculated from the segmentation analysis results.

1. CT scan

Three amorphous fenofibrate tablets were scanned to produce the 3D grayscale CT image.

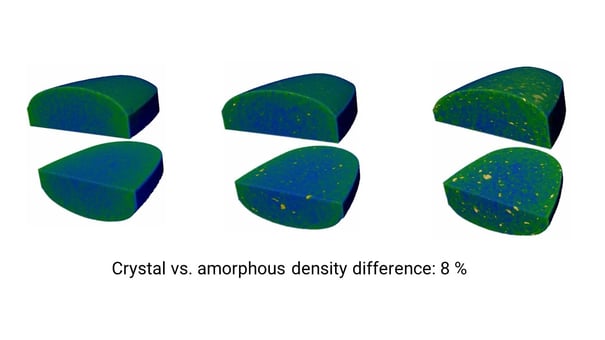

The difference of density between the matrix (amorphous fenofibrate and polymer mixture) and the crystalline fenofibrate phase was estimated to be 8%. The obtained CT images are colored in the figure, the matrix blue-green and the crystalline phase yellow.

2. Crystalline phase segmentation

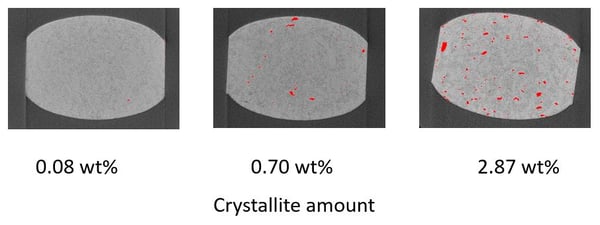

The crystalline phase was segmented in the CT images. The segmented phase is shown in red in the figure.

3. Crystallinity calculation

The volume fraction of the crystalline phase was calculated from the image segmentation and converted into weight percent using the material densities. The spiked crystalline amounts were 0, 1, and 3wt%, and they were calculated as 0.08, 0.70, and 2.87wt%, showing good agreement.
