Plastic Parts Quality Control and Reverse Engineering by X-ray CT

About the sample: Molded plastic

Molding is the process of manufacturing by shaping liquid or pliable material using a rigid frame called a mold. For plastics, a powder or liquid polymer is put into a mold, and heat and pressure are applied to create an end product. There are many different aspects of testing the quality of these plastic parts. Their dimensions are one of them. While checking the dimensions might be easy when the parts have a simple shape with flat surfaces. But when the parts have a complex shape or there are many dimensions to be checked, the quality control process can be complicated. X-ray CT (computed tomography) can scan the part and check the entire surface, including the internal surfaces, for any out-of-spec dimensions. These scans also can be used to reverse engineer the part when the original drawing is missing.

Analysis procedure

1. In this example, four pieces of plastic parts were scanned using a micro-CT scanner, CT Lab HX.
2. The external and internal surfaces were detected using the ISO-50 surface determination technique.
3. A pass/fail test was applied to each part. The part design was also recreated from a CT scan.

1. CT scan

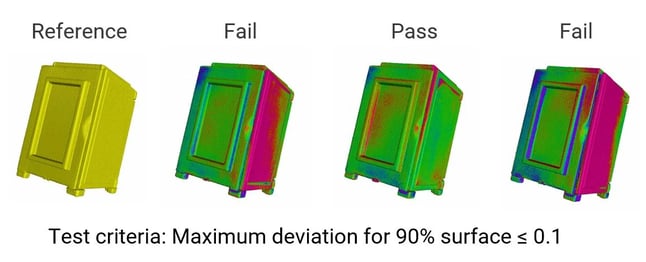

About 1-inch size plastic parts, one reference and three test pieces, were scanned to produce the 3D grayscale CT image.

2. Surface detection

The external and internal surfaces were detected using the ISO-50 surface determination technique.

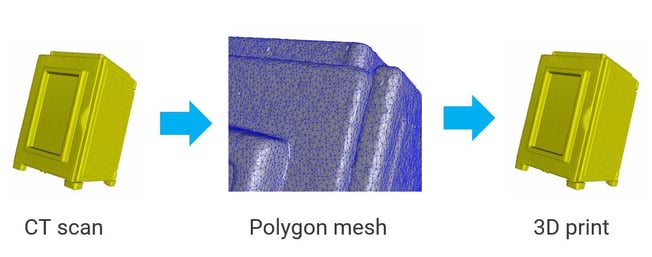

Once you have a reference part scanned, you can create a surface mesh or even a CAD drawing from the scan. You can use this technique when you need to reproduce an old part whose drawing is no longer available. Note that the reference shape can be obtained from an actually well-made single part or an average of multiple good parts.
