Carbonate porosity analysis by X-ray CT - Segmentation comparison

About the sample: Carbonate

Carbonate is a clastic sedimentary rock composed mainly of carbonate minerals such as calcite, aragonite, and dolomite. Most carbonate rocks come from the accumulation of bioclasts created by calcareous organisms such as the shell of snails. The rest of the organisms decompose over time and leave void space. X-ray CT (computed tomography) is one of the very effective techniques to visualize and quantify the void space.

Analysis procedure

1. In this example, a carbonate core (Edwards Yellow) was scanned using a micro-CT scanner, CT Lab HX.
2. The resulting image was segmented into solid and void space using three segmentation techniques.
3. The porosity was calculated from the three void segmentation results, and the pros and cons of each segmentation technique were discussed.

1. CT scan

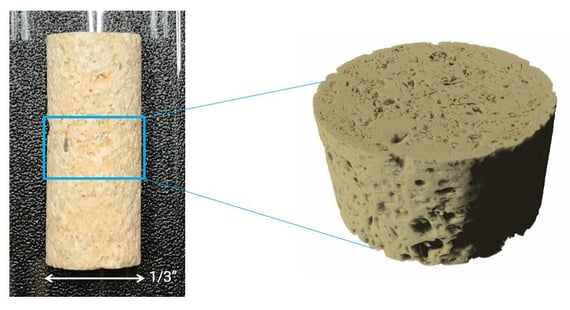

The middle part of the Edwards Yellow 1/3" core sample was scanned to produce the 3D grayscale CT image. A 3D rendered CT scan is shown on the right.

2. Image segmentation

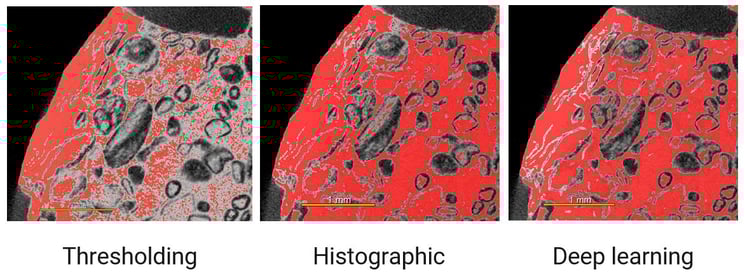

The Edwards Yellow CT image was segmented into solid and void space using gray-level thresholding, histographic thresholding, and deep learning techniques. The segmented solid phase is colored red.

Although the contrast between the solid and void is high, because of the beam hardening artifact, the simple thresholding does not segment the solid phase correctly. Histographic segmentation can compensate for the artifacts well. Deep learning segmentation is not simply based on the gray level but considers the shape, size, and location of each phase. As a result, deep learning also compensates for the artifacts well.

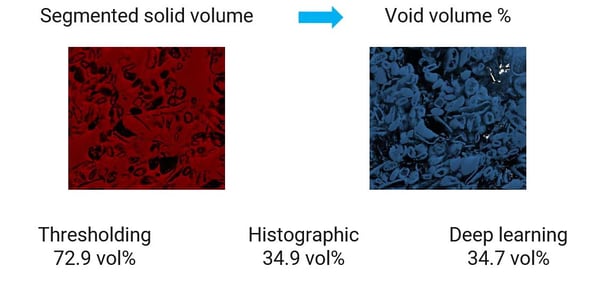

3. Porosity comparison

The porosity is calculated as the volume fraction of the void space:

• Thresholding segmentation - 72.9 vol%
• Histographic segmentation - 34.9 vol%
• Deep learning segmentation - 34.7 vol%
