Processed Meat Fat and Protein Analysis Distribution Analysis by X-ray CT

Application Note RACCT9011

About the sample: Processed meat

Meat products processed to improve their taste or shelf life include various components such as fat, protein, air, water, and salt. Their distribution not only can change the taste and texture but also can influence the shelf life. Processed meat products can be sliced and the internal content can be visually inspected. Alternatively, X-ray CT (computed tomography) can be used to reveal three-dimensional structure in micron resolution. The resulting image can be easily segmented into different materials to quantify their characteristics.

Analysis procedure

  1. In this example, a piece of salami was scanned using a micro-CT scanner, CT Lab HX.
  2. The resulting image was segmented into fat, protein, and air using the machine learning technique.
  3. The fat and void distributions were visualized and their volume fractions were calculated.

1. CT scan

A one-inch thick slice of salami was scanned to produce the 3D grayscale CT image. The sample inside of the CT scanner is shown in the figure.

RACCT9011 XCT food application salami 1-min

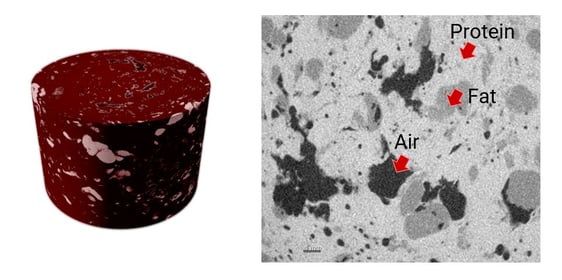

The 3D rendered scan is shown on the left and a cross-section is shown on the right. The gray level in CT data represents the relative density. The protein (light gray), fat (medium gray), and air (dark gray) are clearly distinguished.

RACCT9011 XCT food application salami 2-min


2. Segmentation

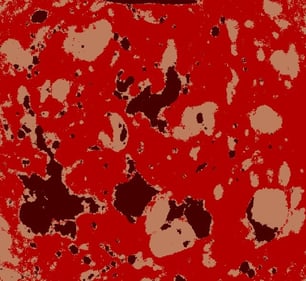

The resulting image was segmented into fat (beige), protein (red), and air (dark brown) using the machine learning technique.  (When there are more than three phases to segment, the machine learning or deep learning method works better than the thresholding method. These two techniques can compensate for the partial volume effect.)
RACCT9011 XCT food application salami 3-min


3. Distribution and volume fraction analysis

The fat and void distributions were visualized in 3D. The volume fractions of fat and voids (air) were 17.9 vol% and 9.2 vol%, respectively.
