Foreign Object X-ray Inspection Instrument

Metals checks in shoes, bags, general merchandise and apparel products by X-ray

Don't miss anything. The dual-screen display lets you see each part of the item you are inspecting with unparalleled clarity and contrast.

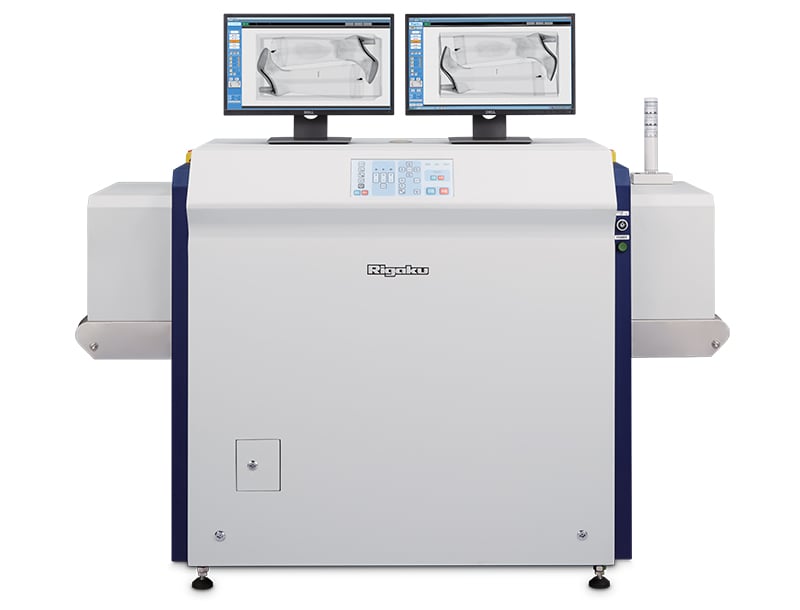

RV-5030B Overview

Two-person team inspection

Two inspectors simultaneously judging results means that you can expect a dramatic improvement inspection accuracy.

Easy-to-use control panel

Control panel at your fingertips provides easy -to-use, push-button operation.

High energy X-ray

High energy X-ray enable a broad range of inspection target (80 kV). Can be used for the inspection of thick metals, shoes soles etc.

Enlarged in-tunnel inspection area

L-shaped line sensor lets you see every area in the tunnels. No blind spots.

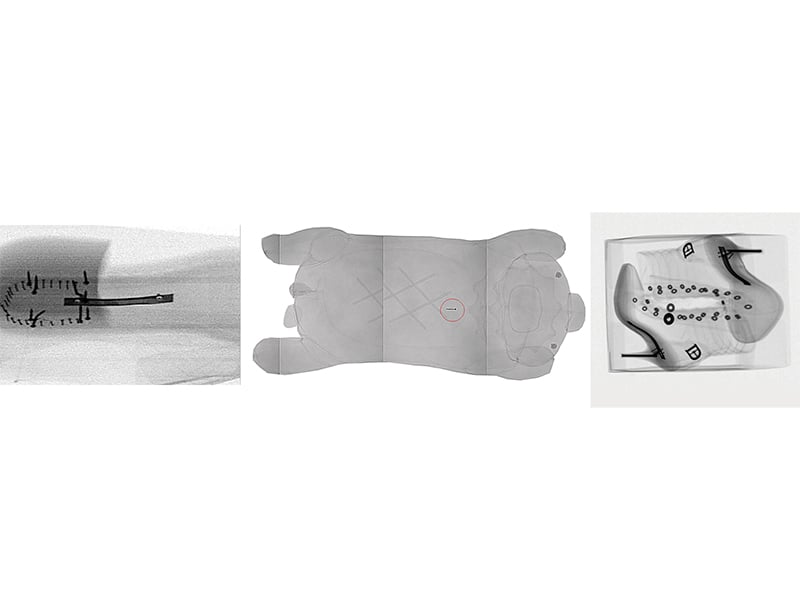

Enlarged tunnel size

Dramatically increased tunnel size (500 x 300 mm) makes it possible to inspect bags and other general merchandise.

RV-5030B Specifications

Technique Non-destructive testing
Benefit Foreign body X-ray inspection
Technology X-ray inspection
Attributes High-energy X-rays (80kV, 140kV)

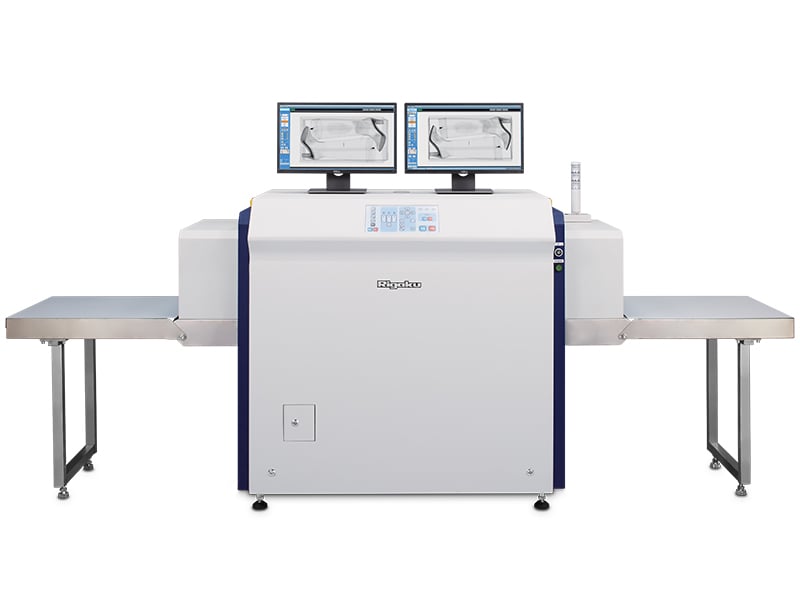

Options Input/output table
Label printer
Control (PC) MS Windows® OS
Dimensions 1430 (W) x 1200 (H) x 903 (D) mm
Mass 405 kg (body)
Power requirements Single phase 220 V ± 10%, 50/60 Hz
