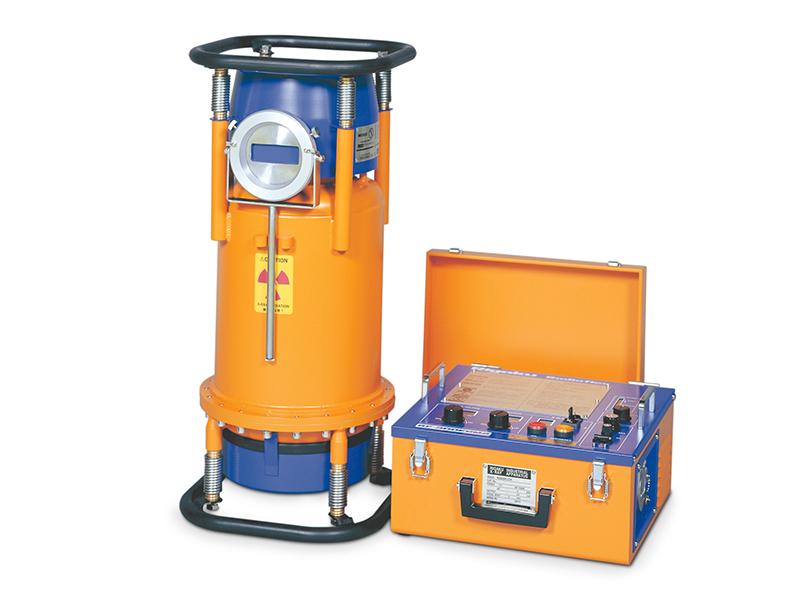

RF-300EGM2

300 KV Microcomputerized Directional Industrial X-ray System

For non-destructive testing inspections

Rigaku offers a powerful lineup of microcomputerized industrial X-ray systems for NDT inspections. What is indispensable for heavy-duty radiographic operation in the field are excellent operational productivity and durability. The Radioflex RF-EGM2 exactly meets these needs.

RF-300EGM2 Features

The X-ray generator employs a ceramic X-ray tube featuring high reliability proven by the past records
The EGM2 series features simplicity and handiness to realize substantial efficiency in radiographic operation in the field

RF-300EGM2 Specifications

Technique X-ray radiography
Benefit Non-destructive testing X-ray inspection
Technology Ceramic X-ray tube
Focus size (nominal) 2.5 mm x 2.5 mm
Tube voltage 130 kV ~ 300 kV in steps of 2 kV
Tube current STD 5 mA (160 kV or less: 4.5 mA ±10%)
LOW 4 mA
Attributes Small size, lightweight; ceramic X-ray tube for resistance to heat, vibration and impact; high-intensity LED display
Dimensions 320 (W) x 687 (H) x 320 (D) mm (Generator)
360 (W) x 208 (H) x 340 (D) mm (Controller)
Mass Approx. 36.5 kg (generator)
17.2 kg (controller)
Power requirements 190 to 240 VAC, single-phase, 50/60 Hz
