XSight Micron LC
X-ray Imaging Detector
Compact 2D X-ray CCD and sCMOS camera

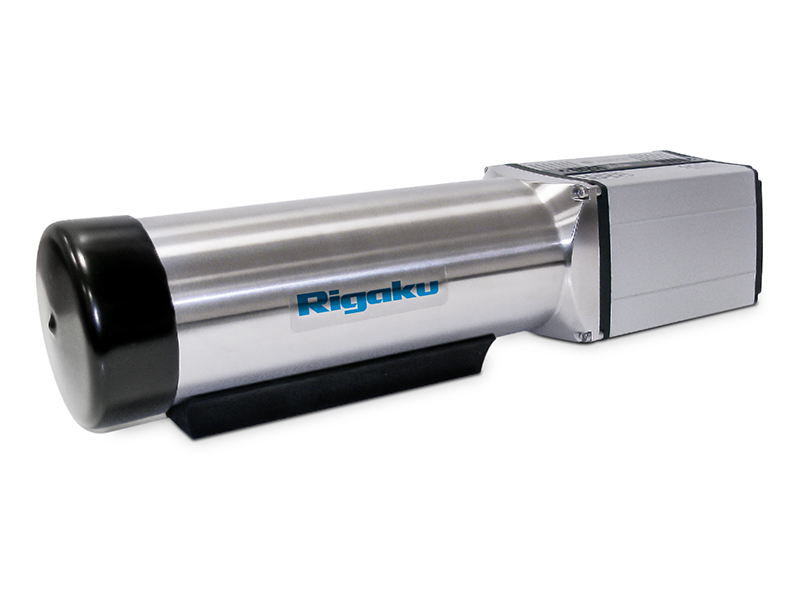

Rigaku XSight™ Micron LC is an ideal compact two dimensional (2D) X-ray sCMOS or CCD camera optimized for use in micron and submicron applications such as X-ray microscopy, X-ray tomography and imaging.
XSight Micron LC Overview
The XSight Micron LC camera has a robust body preventing any scattered X-rays from hitting the sCMOS or CCD sensor directly and thus raising noise. The camera can be easily mounted via M6 threads on the bottom of the camera body. The XSight Micron LC camera is a one package instrument. Data from the camera are transferred via high speed USB 2.0/3.0. No additional electronics box, special computer board or water chiller is necessary. Just plug the USB2.0/3.0 cable into your computer and start taking images! Intuitive software offers all basic tools. Upon request a vacuum version can be delivered. The spectral range sensitivity can be extended into the EUV range (≥ 50 eV).
XSight Micron LC Features
to 14.40 mm (H) x 10.80 mm (V)
From: 0.27 µm to 4.4 µm
3300 (H) x 2500 (V) CCD
2400 : 1 CCD
7.5 e- rms CCD
1-2 fps CCD
0.04 e-/pix./s -10ºC (water-cooled)
USB 2.0 CCD
XSight Micron LC Specifications
| Technique | Compact two-dimensional sCMOS and CCD detector | |
|---|---|---|
| Benefit | Micron and submicron detection, exchangable lens units | |
| Technology | Two-dimensional X-ray sCMOS / CCD camera | |
| Applications | X-ray microscopy, X-ray tomography and metrology applications | |
| Options | Exchangable lens units | |
| Dimensions | 82 mm (H) x 355 mm (L) | |
| Mass | 4.6 kg (core unit) | |
