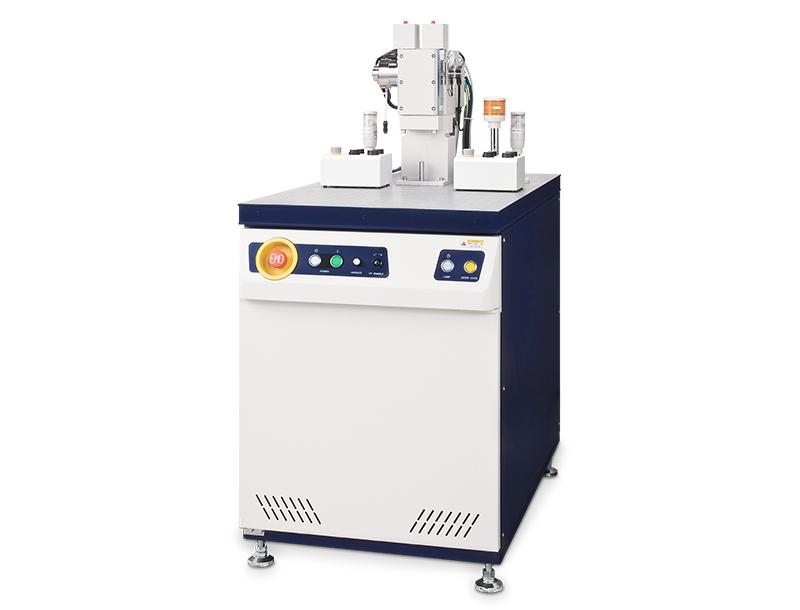

MultiMax-9
Multi-Purpose Rotating Anode X-ray Generator
X-ray source component for X-ray diffraction and crystallography
Rigaku's MultiMax-9 is a versatile, compact and powerful stand alone X-ray sources. Based on tried and tested technologies, the MultiMax-9 is a multi-purpose 9 kW rotating anode X-ray generator that can be adapted to most X‑ray applications.
MultiMax-9 Overview
Line focus applications
- Powder diffraction
- Pair distribution function
- Direct replacement of redundant systems
Point focus applications
- Laue diffraction work
- Guinier camera work
- Diamond anvil cells
- Small molecule crystallography
- Direct replacement of redundant systems
MultiMax-9 Features
High brilliance at 3.6 kW/mm²
Compact design / small footprint
Adjustable tube tower positioning and height
Line and point focus
Built around reliable proven technology
Low cost of ownership
Target materials
Cu, Cr, Fe, Co, Ni, Mo, Au, Ag, W
MultiMax-9 Specifications
| Technique | Multi-purpose rotating anode X-ray generator | |
|---|---|---|
| Benefit | Range of applications | |
| Technology | 9 kW rotating anode X-ray generator | |
| Attributes | High brilliance at 3.6 kW/mm² | |
| Options | Target materials: Cu, Cr, Fe, Co, Ni, Mo, Au, Ag, W | |
| Dimensions | 600 (W) x 1000 (D) x 1150 (H) mm | |
| Mass | 360 kg approx. (core unit) | |
| Power requirements | 1Ø, 20-60 kV, 10-200 mA | |
