List of products - Shaft diameter: 50

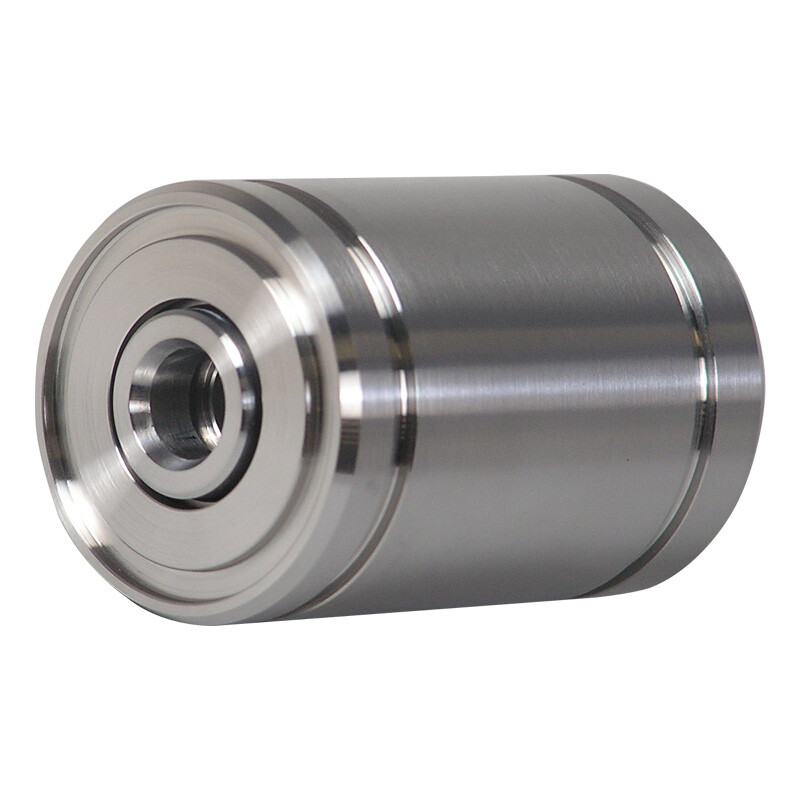

NFT-***-B***

This is a flange-less type, which is directly fit into a chamber wall and sealed with an O-ring.

• Shaft diameter: 10, 12, 15, 20, 25, 30, 40, 50, 75
• Shaft type: Hollow
• Cooling: No-water
• Bearing arrangement: Standard (Both Sides)
• Shaft options: Without clamp, With clamp

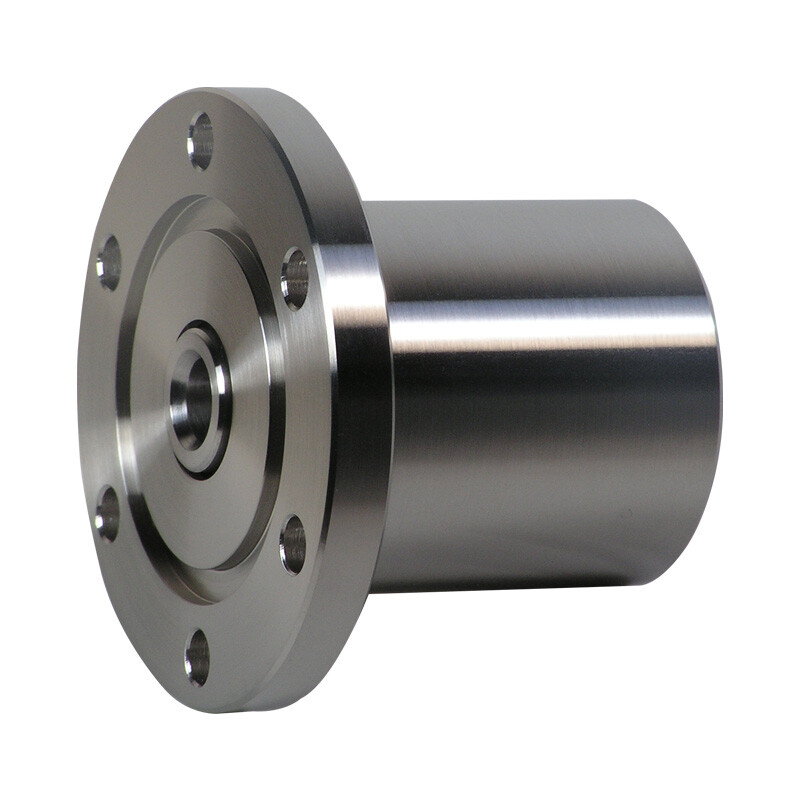

F1T-***-B***

This is a hollow shaft version of the F1B type. As you prepare the shaft as you like, there is a degree of freedom in the design. In this specification, bearings are installed in both sides.

• Shaft diameter: 10, 12, 15, 20, 25, 30, 40, 50, 75
• Shaft type: Hollow
• Cooling: Water
• Bearing arrangement: Standard (Both Sides)
• Shaft options: Without clamp, With clamp

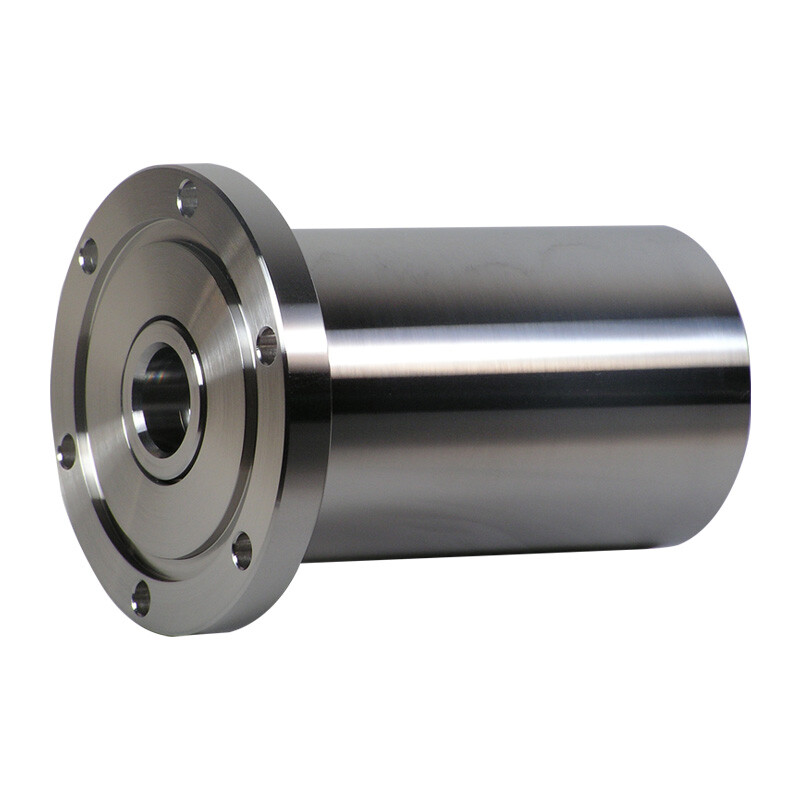

F1T-***-C***

This is based on the F1T type, with the magnetic fluid arranged in the vacuum side. This is suitable for active gas applications.

• Shaft diameter: 20, 25, 30, 40, 50, 75
• Shaft type: Hollow
• Cooling: Water
• Bearing arrangement: Cantilever (One side)
• Shaft options: Without clamp, With clamp
