Cantilever Series F1T-***-C***
This is based on the F1T type, with the magnetic fluid arranged in the vacuum side. This is suitable for active gas applications.
Choose from the options below to see other series with the same properties:
- Hollow shaft (requiring shaft insertion)
- Shaft diameter: 20, 25, 30, 40, 50, 75
- Bearing arrangement: Cantilever (One side)
- Water cooling: Yes
- Shaft features: Without clamp, With clamp

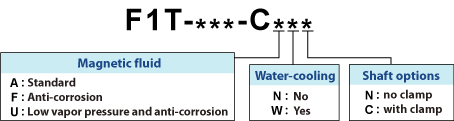

Explanation of the model designation

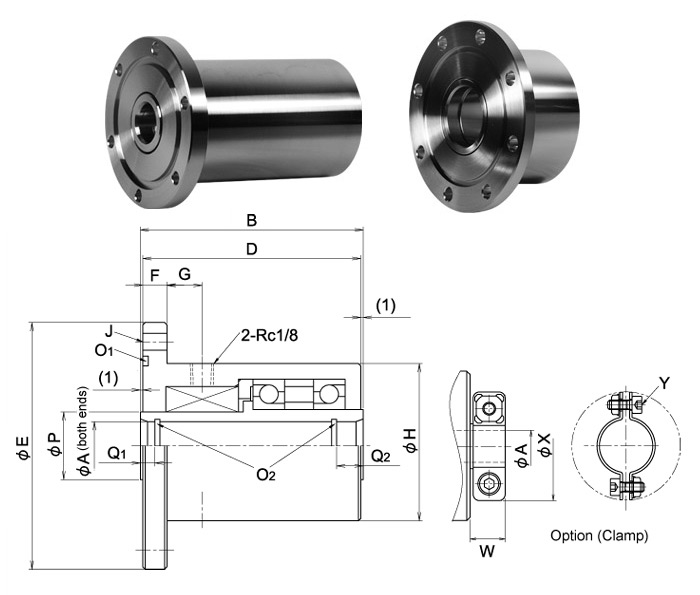

Product specification
| F1T-020-C | F1T-025-C | F1T-030-C | F1T-040-C | F1T-050-C | F1T-075-C | |
|---|---|---|---|---|---|---|
| Inquiry | Inquiry | Inquiry | Inquiry | Inquiry | Inquiry | Inquiry |
| A [mm] | $20H7^{+0.021}_{0}$ | $25H7^{+0.021}_{0}$ | $30H7^{+0.021}_{0}$ | $40H7^{+0.025}_{0}$ | $50H7^{+0.025}_{0}$ | $75H7^{+0.030}_{0}$ |
| B [mm] | 116 | 118 | 134 | 65 | 65 | 74 |
| D[mm] | 114 | 116 | 132 | 63 | 63 | 72 |
| E [mm] | $99f7^{-0.036}_{-0.071}$ | $109f7^{-0.036}_{-0.071}$ | $114f7^{-0.036}_{-0.071}$ | $128f7^{-0.043}_{-0.083}$ | $138f7^{-0.043}_{-0.083}$ | $179f7^{-0.043}_{-0.083}$ |
| F [mm] | 10 | 10 | 12 | 10 | 10 | 12 |
| H [mm] | 64 | 74 | 80 | 92 | 102 | 143 |
| J | 6-Φ9PCD82 | 6-Φ9PCD92 | 6-Φ9PCD98 | 8-Φ9PCD110 | 8-Φ9PCD120 | 8-Φ9PCD161 |
| O (O-ring used) | G60 | G65 | G70 | G85 | G95 | G135 |
| O2 (O-ring used) | S20 | S25 | S30 | S40 | S50 | S75 |
| P [mm] | 30 | 35 | 40 | 50 | 60 | 90 |
| Q1 [mm] | 10 | 10 | 10 | 10 | 10 | 13 |
| Q2 [mm] | 12 | 12 | 13 | 12 | 12 | 16 |
| Water cooling option | 2-Rc1/8 | 2-Rc1/8 | 2-Rc1/8 | 2-Rc1/8 | 2-Rc1/8 | 2-Rc1/8 |
| G [mm] | 11 | 11 | 11 | 12 | 12 | 11 |
| Shaft option１ | Clamp | Clamp | Clamp | Clamp | Clamp | Clamp |
| W [mm] | 13 | 15 | 15 | 15 | 15 | 19 |
| X [mm] | 45 | 57 | 61 | 73 | 83 | 109 |
| Y (hexagon socket head bolt) | M4×10 | M6×12 | M6×12 | M6×16 | M6×16 | M8×20 |
| Max. rotation rate [rpm]1,2 (with water cooling) |
1900 （6500） |
1600 （5500） |
1400 （5000） |
1100 | 1000 | 600 |
| Rated rotation rate [rpm]1,3 (with water cooling) |
1900 | 1600 | 1400 | 1100 | 1000 | 600 |
| Allowable axial load [N]4 | 78 | 120 | 120 | 835 | 900 | 1500 |
| Allowable radial load [N]5 | 391 | 496 | 562 | 835 | 900 | 1500 |
| Mass [kg] | 2.8 | 3.7 | 4.8 | 3.1 | 3.6 | 7.4 |
| Starting torque [N∙m]1,6 | 0.33 | 0.44 | 0.57 | 2.4 | 3.0 | 6.6 |
| Recommended shaft diameter [mm]4 | $20f7^{-0.020}_{-0.041}$ | $25f7^{-0.020}_{-0.041}$ | $30f7^{-0.020}_{-0.041}$ | $40f7^{-0.025}_{-0.050}$ | $50f7^{-0.025}_{-0.050}$ | $75f6^{-0.030}_{-0.049}$ |
¹This is the numerical value when a magnetic fluid of standard vacuum specification (A type) is used. The value is different when a magnetic fluid of anti-corrosion specification (F type) or low vapor pressure and anti-corrosion specification (U type) is used.
²The allowable rotation rate when no load is applied to the shaft.
³The allowable rotation rate when the allowable radial load is applied.
⁴The maximum axial load that can be applied to the center of magnetic fluid seal shaft.
If the load combined with the radial load is applied, or if the load point is off the center of the shaft, please contact us from the Inquiry Form for the magnetic fluid and describe the load conditions in the form.
⁵The maximum radial load that can be applied to the shaft end of magnetic fluid seal.
If the load combined with the axial load is applied, or if the load point is far from the shaft end, please contact us from the Inquiry Form for the magnetic fluid and describe the load conditions in the form.
⁶Starting torque is the maximum load torque upon starting of rotation. This is a reference value and not a guaranteed value. Recommended load torque for selecting a motor is about three times as high as the value described above.
