Application Note BATT1008
Introduction
Si metals, which are used as anodes, are often recycled from silicon wafer scrap. As such, they require impurity control upon acceptance. With the X-ray fluorescence analysis method, it is possible to nondestructively analyze elements at ppm level with the material still in powder form. Even AI impurities in Si matrices, which present difficulties with energy dispersive X-ray fluorescence (EDXRF), can be analyzed with precision using wavelength dispersive X-ray fluorescence (WDXRF).
Composition analysis
- Analysis: Recycled materials
- Analysis method: Matrix correction calibration curve
- Use: Screening
- Analyzed materials: Si metal anodes
WDXRF |
EDXRF |

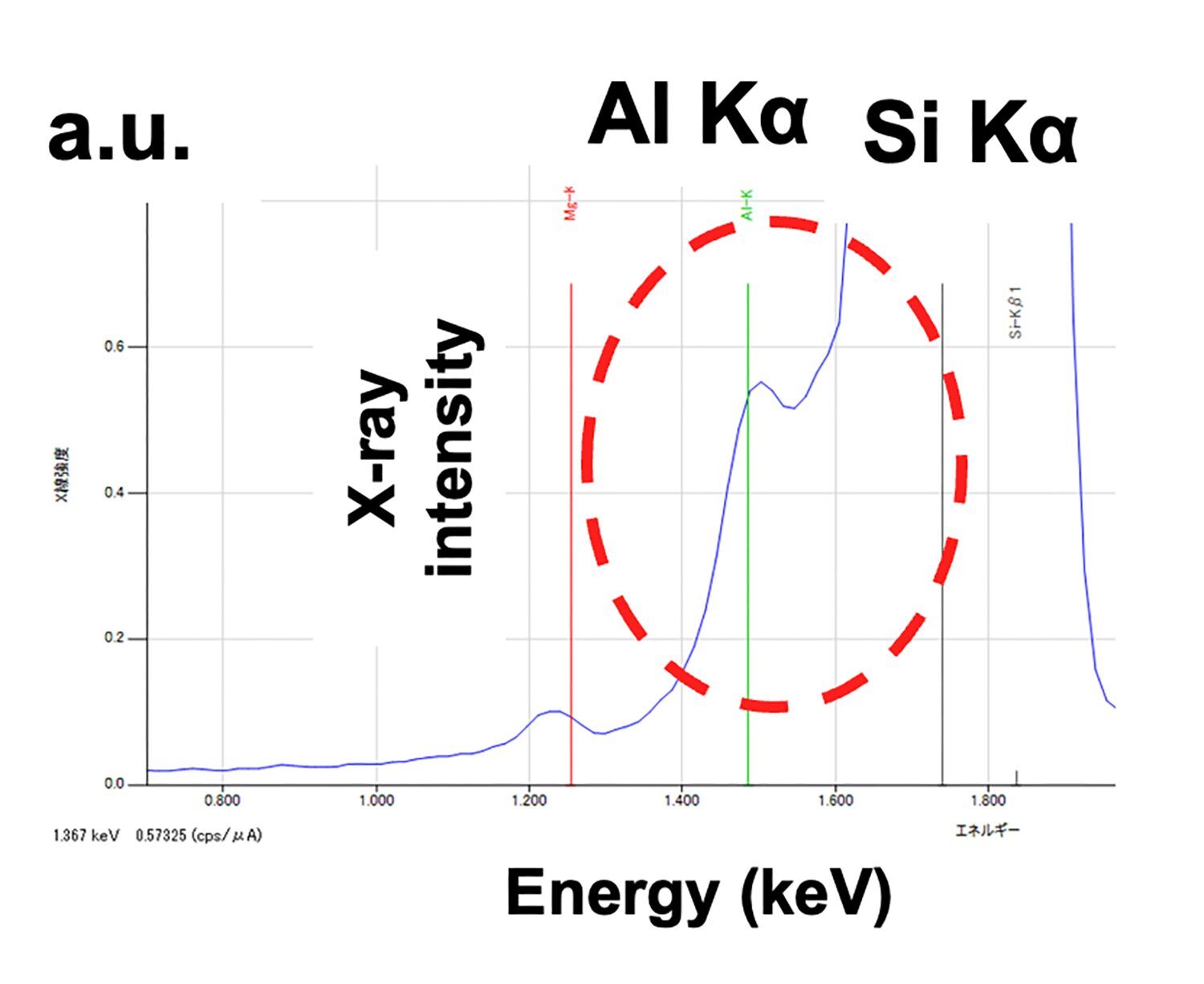

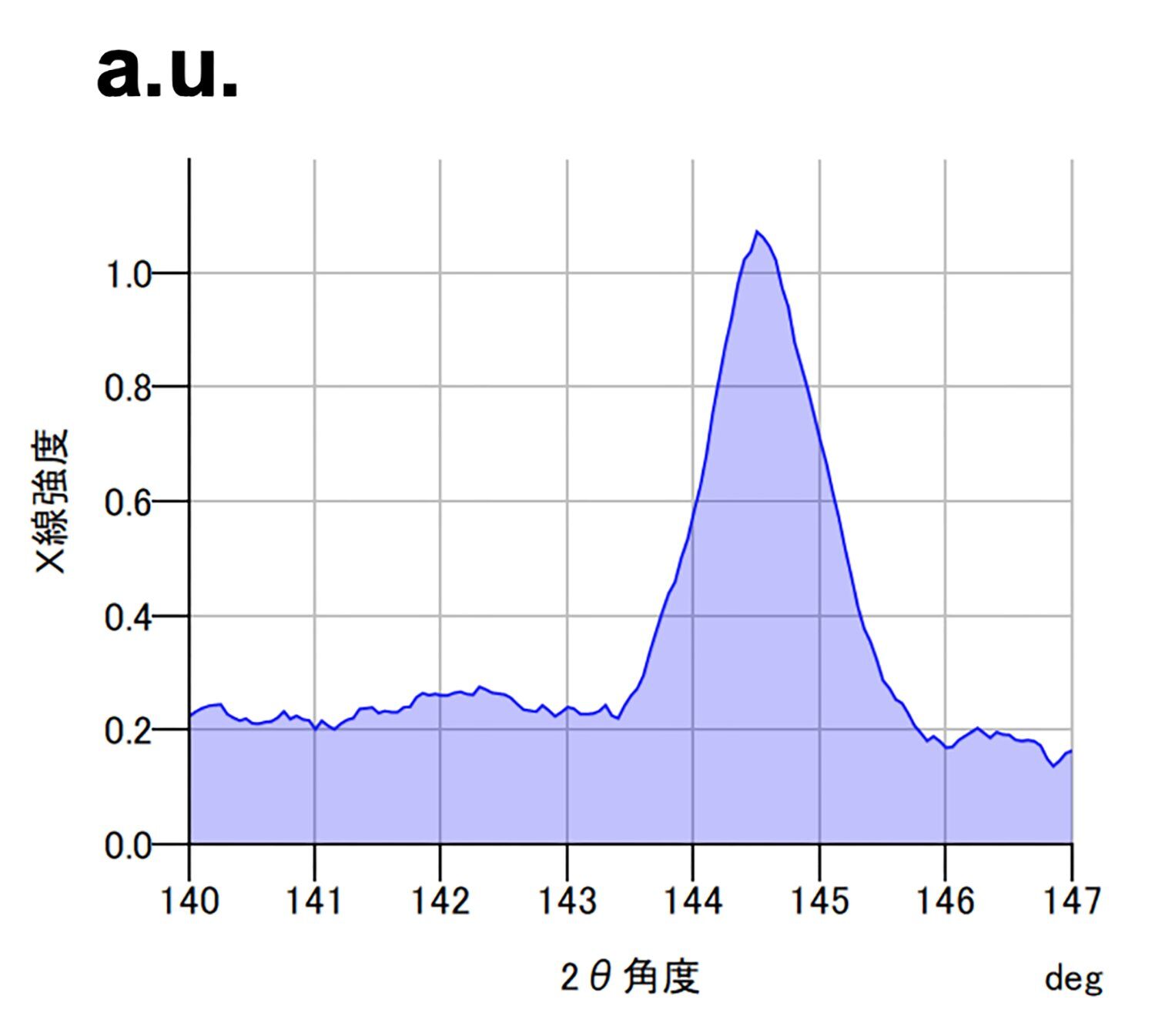

Figure 1: Al spectrum comparison of WDXRF and EDXRF
Table 1: Standardless FP analysis results for electrode grade Si powder
Elements |
Al (ppm) |
Fe (ppm) |
Ca (ppm) |
Analysis Value |
1754 |
832 |
270 |
Conclusion
Al, Fe, and Ca impurities were detected by XRF analysis. On the EDXRF spectrum, the Al peak overlaps with the Si peak. On the WDXRF spectrum, however, it is possible to obtain an Al peak without overlap, making trace analysis possible.
