Standard Series F2B-***-B***
φ 10 mm or over
This type has a housing case arranged on the vacuum side. It is suitable for saving space. In this specification, bearings are installed in both sides.
For shaft diameter of 15 mm or over, end face flat processing is not covered by this specification.
Choose from the options below to see other series with the same properties:
- Solid shaft (equipped with shaft)
- Shaft diameter: 10, 12, 15, 20, 25, 30
- Bearing arrangement: Standard (Both sides)
- Water cooling: No
- Shaft features: Round straight, Flat cut, Key groove

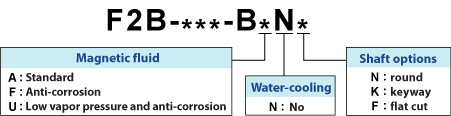

Explanation of the model designation

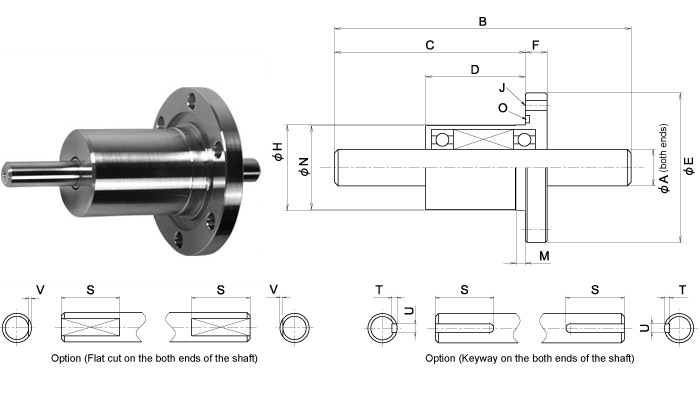

Product specification
| F2B-010-B | F2B-012-B | F2B-015-B | F2B-020-B | F2B-025-B | F2B-030-B | |
|---|---|---|---|---|---|---|
| Inquiry | Inquiry | Inquiry | Inquiry | Inquiry | Inquiry | Inquiry |
| A [mm] | $10g6^{-0.005}_{-0.014}$ | $12g6^{-0.006}_{-0.017}$ | $15g6^{-0.006}_{-0.017}$ | $20g6^{-0.007}_{-0.020}$ | $25g6^{-0.007}_{-0.020}$ | $30g6^{-0.007}_{-0.020}$ |
| B [mm] | 112 | 112 | 128 | 144 | 148 | 169 |
| C [mm] | 79 | 79 | 88 | 102 | 99 | 109 |
| D [mm] | 49 | 49 | 48 | 57 | 49 | 49 |
| E [mm] | 69 | 69 | 79 | 89 | 94 | 94 |
| F [mm] | 8 | 8 | 10 | 10 | 12 | 12 |
| H [mm] | $36f7^{-0.025}_{-0.050}$ | $36f7^{-0.025}_{-0.050}$ | $42f7^{-0.025}_{-0.050}$ | $51f7^{-0.030}_{-0.060}$ | $56f7^{-0.030}_{-0.060}$ | $56f7^{-0.030}_{-0.060}$ |
| J | 6-Φ6.5PCD58 | 6-Φ6.5PCD58 | 6-Φ6.5PCD66 | 6-Φ9PCD75 | 6-Φ9PCD80 | 6-Φ9PCD80 |
| M [mm] | 6 | 6 | 6 | 6 | 6 | 6 |
| N [mm] | 35 | 35 | 41 | 50 | 55 | 55 |
| O | G40 | G40 | G45 | G55 | G60 | G60 |
| Shaft option１ | Key groove (both ends) | Key groove (both ends) | Key groove (both ends) | Key groove (both ends) | Key groove (both ends) | Key groove (both ends) |
| S [mm] | 16 | 19 | 26 | 31 | 36 | 46 |
| T [mm] | $2.5^{+0.1}_{0}$ | $2.5^{+0.1}_{0}$ | $3^{+0.1}_{0}$ | $3.5^{+0.1}_{0}$ | $4^{+0.1}_{0}$ | $5^{+0.1}_{0}$ |
| U [mm] | $4^{+0.040}_{0}$ | $4^{+0.040}_{0}$ | $5^{+0.040}_{0}$ | $6^{+0.040}_{0}$ | $8^{+0.040}_{0}$ | $10^{+0.040}_{0}$ |
| Shaft option２ | Flat cut (both ends) | Flat cut (both ends) | ||||
| S [mm] | 15 | 18 | ||||
| V [mm] | 1 | 1 | ||||
| Max. rotation rate [rpm]1,2 | 3200 | 3200 | 2200 | 1900 | 1300 | 1300 |
| Rated rotation rate [rpm]1,3 | 2600 | 3200 | 2200 | 1900 | 1300 | 1300 |
| Allowable axial load [N]4 | 118 | 137 | 141 | 213 | 115 | 140 |
| Allowable radial load [N]5 | 118 | 137 | 141 | 213 | 115 | 140 |
| Mass [kg] | 0.7 | 0.7 | 1 | 1.5 | 1.8 | 2.1 |
| Starting torque [N∙m]1,6 | 0.051 | 0.051 | 0.1 | 0.14 | 0.32 | 0.32 |
| Allowable transmission torque [N∙m] | 9 | 13 | 30 | 60 | 140 | 210 |
¹This is the numerical value when a magnetic fluid of standard vacuum specification (A type) is used. The value is different when a magnetic fluid of anti-corrosion specification (F type) or low vapor pressure and anti-corrosion specification (U type) is used.
²The allowable rotation rate when no load is applied to the shaft.
³The allowable rotation rate when the allowable radial load is applied.
⁴The maximum axial load that can be applied to the center of magnetic fluid seal shaft.
If the load combined with the radial load is applied, or if the load point is off the center of the shaft, please contact us from the Inquiry Form for the magnetic fluid and describe the load conditions in the form.
⁵The maximum radial load that can be applied to the shaft end of magnetic fluid seal.
If the load combined with the axial load is applied, or if the load point is far from the shaft end, please contact us from the Inquiry Form for the magnetic fluid and describe the load conditions in the form.
⁶Starting torque is the maximum load torque upon starting of rotation. This is a reference value and not a guaranteed value. Recommended load torque for selecting a motor is about three times as high as the value described above.
